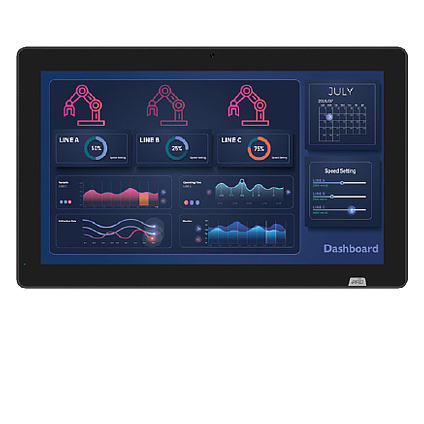

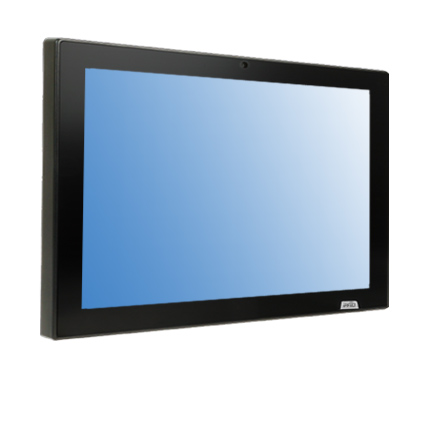

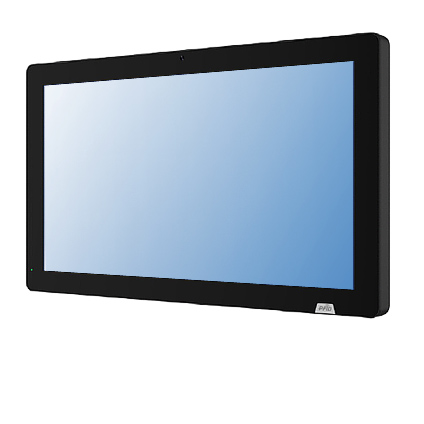

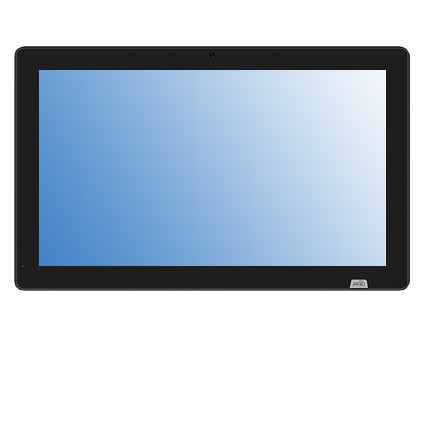

AFL3-W19C-ADLP 18.5" Industrial Panel PC

Features:

  • 18.5" Wide Screen Light Industrial Panel PC
  • 1920 x 1080 (16:10) 350nits Brightness
  • Projected Capacitive Touch Screen with Anti-UV / Anti-glare Coating
  • 12th Gen Intel® Core™ Mobile i7/i5/i3 Processor
  • 2 x 260-pin DDR4 SO-DIMM Memory (Max. 32GB)
  • 2 x M.2 2280 M-key (PCIe x4), 1 x M.2 3080 B-key (PCIe x1 or SATA) support IPMI function
  • Support Wi-Fi 6E and Bluetooth 5.2
  • Selectable AT/ATX Power Mode
  • Built-in Speakers, Camera and Microphone
  • IP64 Compliant Front Panel

The AFL3-W19C-ADLP high-performance fanless panel computer is a formidable computing solution, boasting compatibility with 12th Gen Intel® Core™ i7/i5/i3 processors for exceptional processing power. With 8GB of DDR4 memory, it ensures smooth multitasking and robust performance. Equipped with an HDMI output, it enables seamless connectivity to external displays. The inclusion of dual 2.5GbE LANs facilitates high-speed networking, while the implementation of IPMI remote management enhances accessibility and maintenance efficiency. This panel computer offers extensive customization potential, featuring three M.2 expansion slots. Its 10-point capacitive touchscreen, equipped with anti-glare and UV-resistant properties, ensures durability and usability in diverse environments while maintaining RoHS compliance, making it an ideal choice for demanding industrial applications.

Barebone & Base Configurations

AFL3-W19C-ADLP Industrial Panel PC


  • 18.5" 1920 x 1080 350nits, Anti-UV/AG Coating Projected Capacitive Touch
  • 12th Generation Intel® Core™ i3-1220P on-board processor
  • 12th Generation Intel® Core™ i5-1240P on-board processor (Optional)
  • 12th Generation Intel® Core™ i7-1260P on-board processor (Optional)
  • 8GB DDR4 SO-DIMM Memory
  • 250GB M.2 NVME Solid State Drive

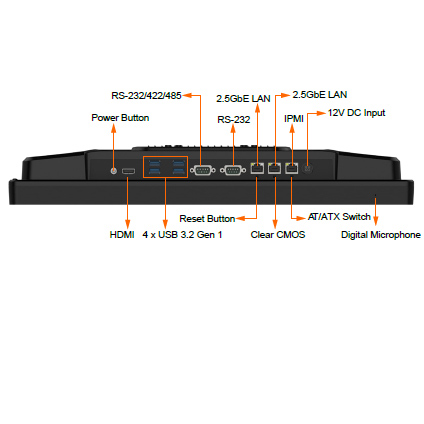

  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 4 x USB 3.2 Gen 1
  • IEEE 802.11ax 2T2R Module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)
  • 2 x 2.5GbE LAN, 1 x IPMI LAN
  • 12V DC Power Input

Barebone Only:

$1,645.00

Configured:

$1,735.00

Customize
