AFL3-W22C-ADLP 21.5" Industrial Panel PC

Features:

  • 21.5" Wide Screen Light Industrial Panel PC
  • 1920 x 1080 (16:10) 350nits Brightness
  • Projected Capacitive Touch Screen with Anti-UV / Anti-glare Coating
  • 12th Gen Intel® Core™ Mobile i7/i5/i3 Processor
  • 2 x 260-pin DDR4 SO-DIMM Memory (Max. 32GB)
  • 2 x M.2 2280 M-key (PCIe x4), 1 x M.2 3080 B-key (PCIe x1 or SATA) support IPMI function
  • Support Wi-Fi 6E and Bluetooth 5.2
  • Selectable AT/ATX Power Mode
  • Built-in Speakers, Camera and Microphone
  • IP64 Compliant Front Panel

The AFL3-W22C-ADLP high-performance fanless panel computer is a robust computing solution built to excel in demanding environments. It harnesses the power of 12th Gen Intel® Core™ i7/i5/i3 processors paired with 8GB DDR4 memory, ensuring exceptional processing capabilities and multitasking efficiency. Offering seamless connectivity with an HDMI output and dual 2.5GbE LANs, it facilitates high-speed data transfer and external display connectivity. This panel computer is equipped with IPMI remote management for enhanced accessibility and maintenance convenience. Its three M.2 expansion slots enable extensive customization and scalability. The device features a durable, RoHS-compliant 10-point capacitive touchscreen with anti-glare and UV-resistant properties, ensuring reliability and usability in various challenging environments, making it an optimal choice for industrial applications requiring high performance and durability.

Barebone & Base Configurations

AFL3-W22C-ADLP Industrial Panel PC


  • 21.5" 1920 x 1080 350nits, Anti-UV/AG Coating Projected Capacitive Touch
  • 12th Generation Intel® Core™ i3-1220P on-board processor
  • 12th Generation Intel® Core™ i5-1240P on-board processor (Optional)
  • 12th Generation Intel® Core™ i7-1260P on-board processor (Optional)
  • 8GB DDR4 SO-DIMM Memory
  • 250GB M.2 NVME Solid State Drive

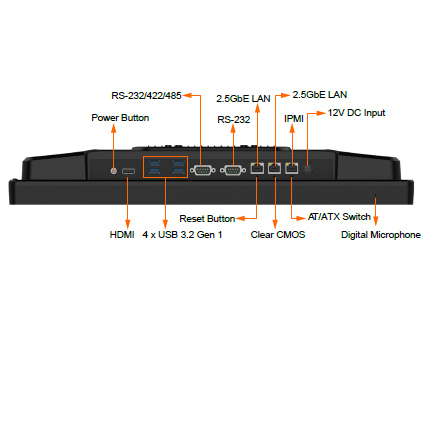

  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 4 x USB 3.2 Gen 1
  • IEEE 802.11ax 2T2R Module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)
  • 2 x 2.5GbE LAN, 1 x IPMI LAN
  • 12V DC Power Input

Barebone Only:

$1,695.00

Configured:

$1,785.00

Customize
