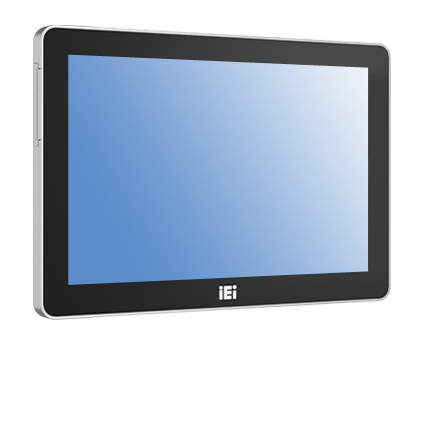

AFL4-W08-EHL 8" Industrial Panel PC

Features:

  • 8" 1280 x 800 (16:10) 420nits w/ Multi-point Projected Capacitive Touch Screen
  • Narrow Bezel Design
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
  • Dual channel 8GB LPDDR4x On Board
  • Support WiFi 6E and Bluetooth® 5.2
  • Built-in 1.2W Internal Speakers
  • Body Material: Aluminum die Casting
  • IP64 Compliant Front Panel
  • Mounting Supports Wall, Stand, Arm, VESA 75mm x 75mm (Optional)

The AFL4-W08-EHL fanless panel computer stands as a testament to innovation, leveraging the Intel® Elkhart Lake Platform for powerful performance. Its sleek design, with a new narrow bezel, optimizes screen space for an immersive user experience. The device boasts an anti-glare and anti-UV PCAP (Projected Capacitive) touchscreen, ensuring visibility in various lighting conditions while supporting gloved and wet hand operation for added convenience and versatility. With support for WiFi 6E and Bluetooth 5.2, this panel computer ensures seamless connectivity and high-speed data transfer, catering to modern networking needs with efficiency and reliability.

Barebone & Base Configurations

AFL4-W08-EHL 8" Fanless Touch Panel PC


  • 8" 1280 x 800 420nits Projected Capacitive Touch Screen
  • Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz)
  • 8GB LPDDR4 Memory On-board
  • 256GB M.2 2242 SATA Solid State Drives

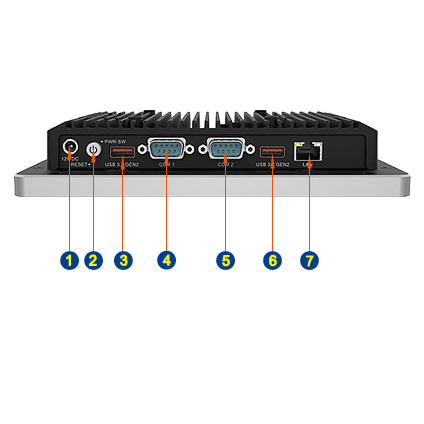

  • 2 x RS-232/422/485 (DB9)
  • 1 x 2.5GbE LAN
  • 2 x USB3.2, 1 x USB2.0
  • HDMI
  • IEEE 802.11 a/b/g/n/ax, Bluetooth V5.2
  • IP 64 Compliant Front Panel
  • Power Adapter

Barebone Only:

$725.00

Configured:

$779.00

Customize
