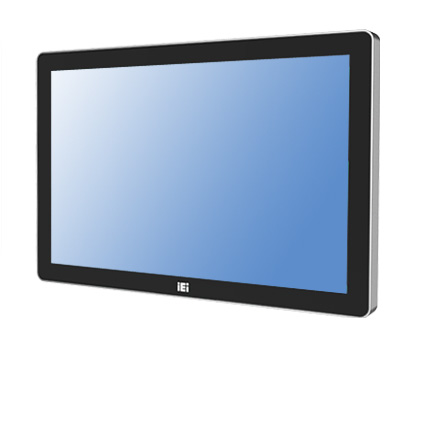

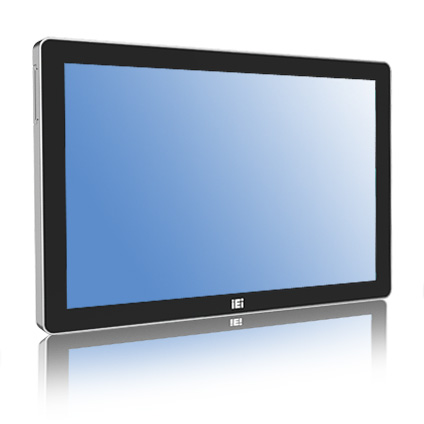

AFL4-W15-EHL 15.6" Industrial Panel PC

Features:

  • 15.6” 1920 x 1080 (16:9) 500nits w/ Multi-point Projected Capacitive Touch Screen
  • Narrow Bezel Design
  • Anti-glare and Anti-UV PCAP
  • Support Gloved and Wet Hand Operation
  • Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
  • Dual channel 8GB LPDDR4x On Board
  • 1 x M.2 M key 2280 (PCIe Gen3 x2), 1 x M.2 M key 2242 (PCIe Gen3 x1 or SATA)
  • Support WiFi 6E and Bluetooth® 5.2
  • Built-in 1.2W Internal Speakers
  • Body Material: Aluminum die casting+SECC
  • IP64 Compliant Front Panel
  • Mounting Supports Wall, Stand, Arm, VESA 75mm x 75mm (Optional)

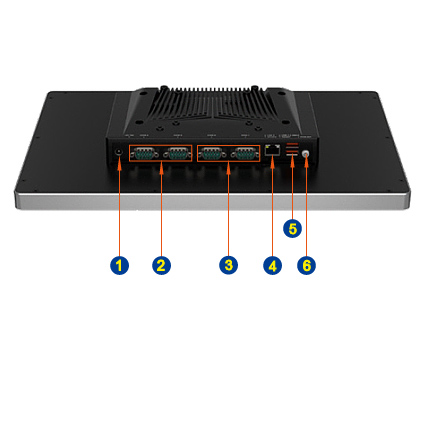

The AFL4-W15-EHL fanless panel PC combines sleek aesthetics with powerful functionality, featuring a narrow bezel design that maximizes screen real estate. Driven by an Intel® Celeron® J6412 processor and equipped with 8GB of onboard memory, this panel PC delivers efficient performance for various applications. Its HDMI output ensures seamless connectivity to external displays. The dual 2.5GbE LAN, along with two RS-232, two RS-422/485, two USB 3.2 Gen2, and three USB 2.0 ports, offers extensive connectivity options. Additionally, it provides expandability through two M.2 M key expansion slots while boasting a 10-point touchscreen with anti-glare and anti-UV properties, enhancing usability and durability in diverse environments.

Barebone & Base Configurations

AFL4-W15-EHL 15.6" Fanless Touch Panel PC


  • 15.6” 1920 x 1080 500nits Projected Capacitive Touch Screen
  • Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz)
  • 8GB LPDDR4 On-board Memory
  • 250GB M.2 Solid State Drive
  • 2 x RS-232 (DB9), 2 x RS-422/485 (DB9)
  • 2 x 2.5GbE LAN
  • 2 x USB3.2, 3 x USB2.0
  • HDMI
  • 802.11a/b/g/n/ac/ax WiFi&Bluetooth® 5.2 module
  • Power Adapter

Barebone Only:

$1,015.00

Configured:

$1,089.00

Customize
