Features:

• 1U Rack Mount Server
• AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology
• Single processor, 5nm technology
• 12-Channel RDIMM DDR5, 12 x DIMMs
• Dual ROM Architecture
• 2 x Hot-Swap 2.5” NVMe/SATA/SAS Drive Bays
• 1 x M.2 slot with PCIe Gen3 x4 interface
• 1 x 1Gb/s LAN port (Intel® I210-AT), 1 x Dedicated management port
• 2 x FHHL PCIe Gen5 x16 slots
• 2 x OCP 3.0 Gen5 x16 slots

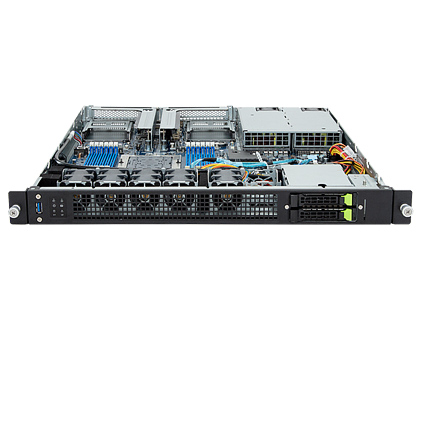

• Front I/O Ports: 1 x USB 3.2

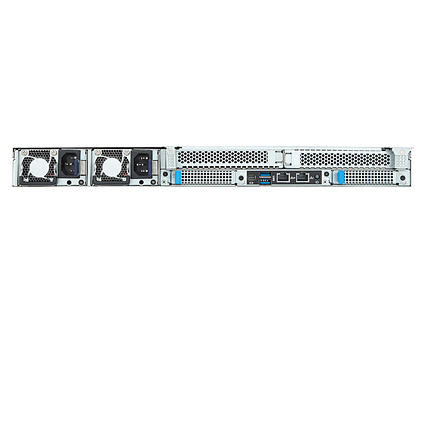

• Rear I/O Ports: 2 x USB 3.2, 1 x Mini-DP, 1 x GbE LAN, 1 x MLAN, 1 x ID Button with LED
• 5 x 40x40x56mm 30,000 RPM Cooling Fans
• 800W Redundant 80 PLUS platinum power supplies
• Dimension: 17.24" x 20.47" x 1.71" (438mm x 520mm x 43.5mm

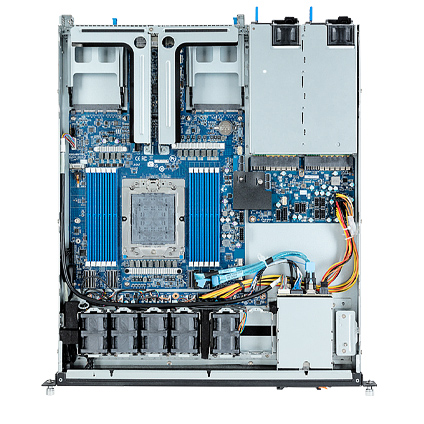

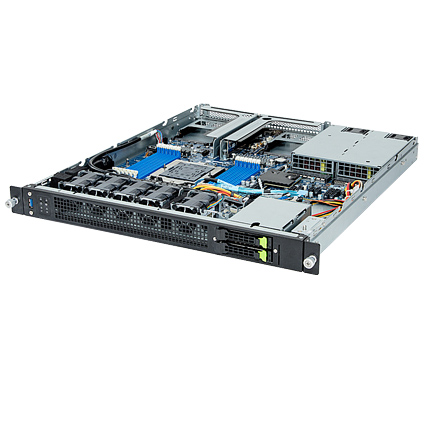

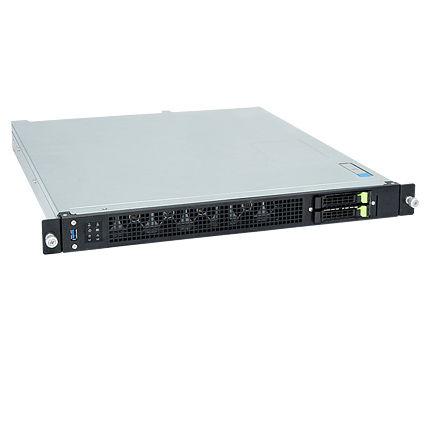

The Gigabyte E163-Z30 (rev. AAB1) is a versatile 1U server powered by AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ technology. For storage capabilities the E163-Z30 (REV. AAB1) has two 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays. For expansion purposes there are up to two FHHL PCIe 5.0 x16 slots, and two OCP 3.0 Gen5 x16 slots. The Gigabyte Server E163-Z30 (rev. AAB1) is equipped with five 40mm 30,000 RPM cooling fans, and 800W redundant 80 Plus platinum power supplies.
