Gigabyte Server E283-S90 (rev. AAD1) 4th/5th Gen Intel® Xeon® Scalable Server System

Features:

  • 2U Rack Mount Server
  • Dual LGA 4677 Socket, 4th/5th Gen Intel® Xeon® Scalable Processors
  • 8-Channel RDIMM DDR5 per processor, 32 x DIMMs
  • Dual ROM Architecture supported

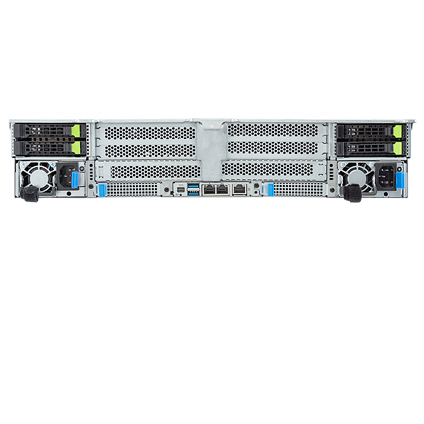

  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays on rear side
  • 6 x FHHL PCIe Gen5 x16 slots
  • 2 x OCP 3.0 Gen5 x16 slots
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port

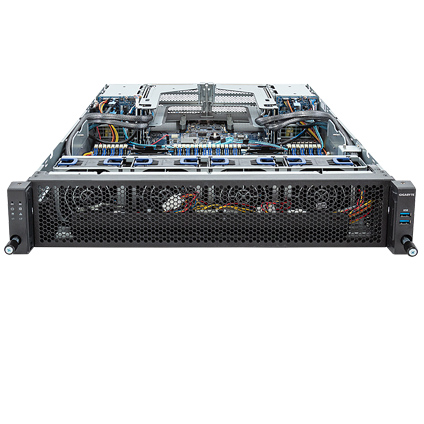

  • 4 x 80x80x38mm (18,300rpm) Cooling Fans
  • Dual 1600W 80 PLUS Platinum redundant power supply

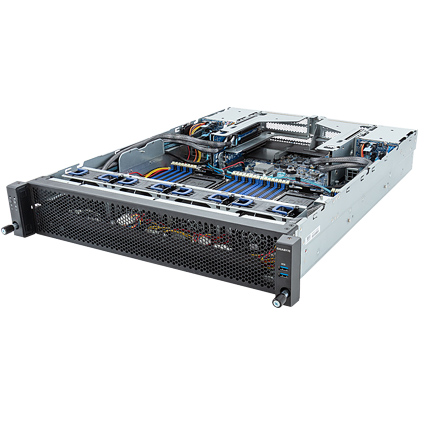

The Gigabyte Server E283-S90 (Rev. AAD1) 2U Rackmount Server features dual socket 4th/5th Gen Intel® Xeon® Scalable Processors, 32x DDR5 ECC RDIMM slots, comes with 4 x 2.5" NVMe/SATA/SAS hot-swappable bays on rear side. The E283-S90 (Rev. AAD1) is equipped with 4x 80mm cooling fans, and 1600W 80 plus platinum redundant power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

Gigabyte E283-S90 (rev. AAD1) 2U Rackmount Server
Gigabyte E283-S90 (rev. AAD1) 2U Rackmount Server


  • 2 x 4th Gen Intel® Xeon® Scalable Processors
  • DDR5 ECC Registered Memory
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 1 x TPM Header
  • 1 x Mini-DP Port
  • 2 x OCP 3.0 Slots
  • Built-in 2 x GbE LAN, 1 x Management LAN
  • 1600W Redundant 80 Plus Platinum Power Supply

    • Configured:

    		$4,955.00

    Customize
