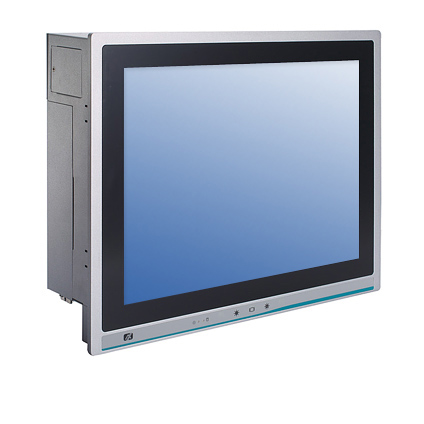

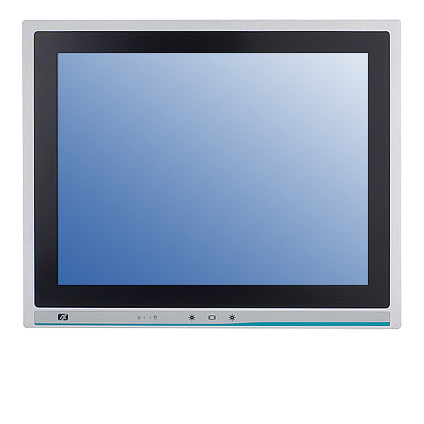

P115-ADL-TRA 15" Expandable Industrial Panel PC

Features:

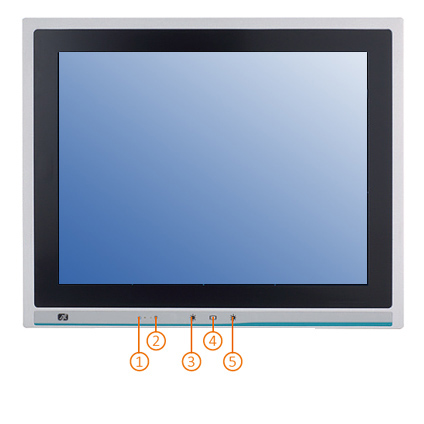

  • 15” XGA LCD with 300nits of Brightness, 5-wire Resistive Touch
  • 12th gen Intel® Core™ i7/i5/i3, Celeron® & Pentium® processor (Tj 100°C) TDP 35W / 65W
  • Intel® H610 Chipset
  • 1 x 2.5'' SATA HDD/SSD Drive Bay
  • 2 x 260-pin DDR4 SO-DIMM (MAX, 64GB)

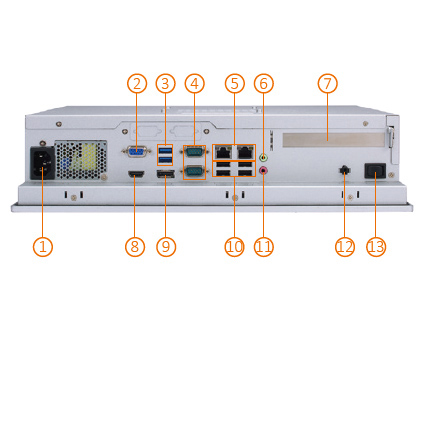

  • 1 x HDMI, 1 x DP, 1 x VGA Output for 2nd Display
  • 2 x USB 3.2, 4 x USB 2.0 and 4 x COM
  • TPM 2.0 Onboard
  • One Flexible I/O Window
  • Supports WLAN Module & Antenna (Optional)

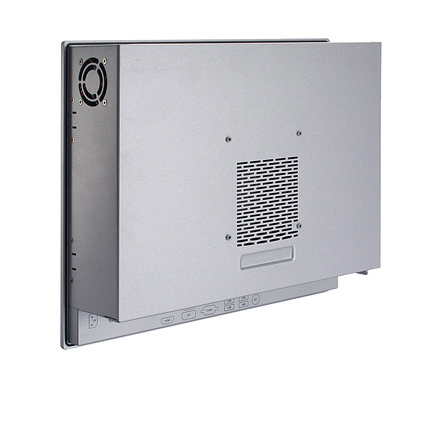

  • Supports Panel/VESA/Wall Mount Kit
  • 32°F to 122°F Operating Temperature
  • New Graphical BIOS Interface

The P115-ADL-TRA expandable industrial touch panel computer offers robust performance and versatility for industrial applications. Its 15” XGA LCD display with 300 nits of brightness ensures clear visibility in various lighting conditions, while the 5-wire resistive touch technology provides precise and responsive interaction. With support for one 2.5” SATA HDD/SSD, it offers ample storage for data-intensive tasks. The computer also features multiple display output options including HDMI, DP, and VGA for seamless integration with secondary displays. Its flexible I/O window allows for customization according to specific connectivity needs, while optional WLAN module and antenna support enhance connectivity options. Furthermore, the computer boasts a range of connectivity ports including USB 3.2, USB 2.0, and COM ports for efficient peripheral integration. With onboard TPM 2.0 for enhanced security, a variety of mounting options including Panel, VESA, and wall mount kits, and an operating temperature range of 32°F to 122°F, the P115-ADL-TRA is an ideal solution for demanding industrial environments requiring reliability and adaptability.

Barebone & Base Configurations

P115-ADL-TRA Heavy Industrial Panel PC

  • 15” 1024 x 768 300 nits TFT LCD Display with Resistive Touch Screen
  • Intel® Celeron® Processor G6900T (4M Cache, 2.80 GHz)
  • 8GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 2 x USB 3.2, 4 x USB 2.0
  • 1 x PCIe x16 Expansion Slot
  • 1 x VGA, 1 x HDMI, 1 x DisplayPort
  • TPM 2.0
  • 1 x 2.5 GbE LAN, 1 x GbE LAN
  • 250W 100-240VAC Power Supply

Barebone Only:

$1,245.00

Configured:

$1,425.00

Customize
