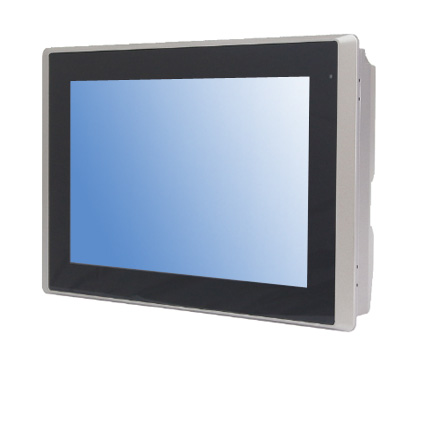

PMS5810 10.1" Flat Industrial Panel PC

Features:

  • Onboard Intel® Celeron® Processor N2930 (2M Cache, 1.83 GHz)
  • Onboard 4GB DDR3L Memory
  • 1 x 2.5" SATA SSD Bay
  • 1 x Full Size Mini-PCIe slots, 1 x SD Card Slot
  • 2 x GbE LAN
  • Wide Range Voltage DC In 9~36V
  • Support Panel Mount, VESA 100 x 100
  • IP65 Compliant, Aluminum Die-casting Front Bezel and Chassis

The PMS5810 panel computer an industrial-grade computing solution designed for applications that require a compact and reliable computing platform. The computer features a 10.1" flat front panel touch screen, making it easy to use in a variety of environments. The built-in Intel Bay Trail N2930 CPU provides powerful and efficient performance, while the onboard 4GB DDR3L memory ensures smooth and responsive operation. The PMS5810 panel computer also features a wide-ranging power input of DC 9~36V, making it ideal for use in vehicles and other mobile applications. The front panel of the computer is IP65 compliant, providing protection against dust, dirt, and water. Overall, the PMS5810 panel computer is a reliable and efficient solution for a variety of computing needs in industrial and commercial settings.

Base Configurations

PMS5810 Industrial Panel PC


  • 10.1” TFT LCD 1280 x 800 w/ Projected Capacitive Touch Screen
  • Intel® Celeron® Processor N2930 (2M Cache, 1.83 GHz)
  • Onboard 4GB DDR3L Memory
  • 250GB 2.5" SATA Solid State Drive

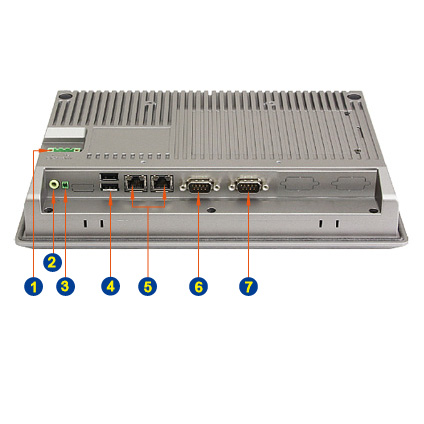

  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 2 x GbE LAN
  • 1 x HDMI Port (reserved, no printing)
  • 1 x USB3.0, 1 x USB2.0
  • 1 x Full Size Mini-PCIe Slot, 1 x SD Card Slot
  • 9-36 VDC Power Input with Power Adapter

Configured:

$1,015.00

Customize
