Features:

• 2U Rack Mount Server
• AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
• Single processor, 5nm technology
• 12-Channel RDIMM DDR5 per processor, 12 x DIMMs
• Dual ROM Architecture
• 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
• 8 x 3.5"/2.5" SATA/SAS hot-swappable bays
• 1 x M.2 slot with PCIe Gen3 x4 interface
• 2 x FHHL PCIe Gen5 x16 slots
• 3 x FHHL PCIe Gen4 x16 and x8 slots
• 2 x OCP 3.0 Gen5 x16 slots

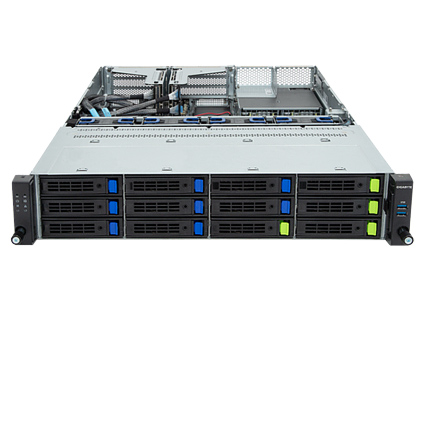

• Front I/O Ports: 2 x USB 3.2

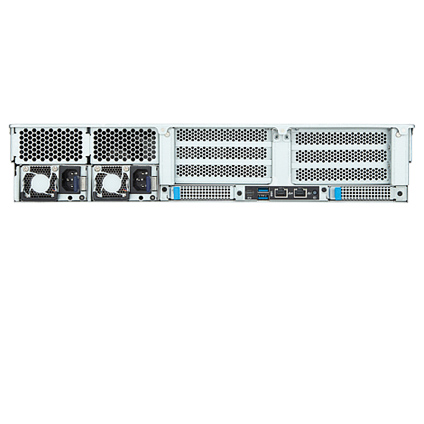

• Rear I/O Ports: 2 x USB 3.2, 1 x Mini-DP, 1 x GbE LAN, 1 x MLAN, 1 x ID Button with LED
• 4 x 80x80x38mm 18,300 RPM cooling fans
• 1300W Redundant 80 Plus platinum power supplies
• Dimension: 17.24" x 28" x 3.45" (438mm x 710mm x 87.5mm)

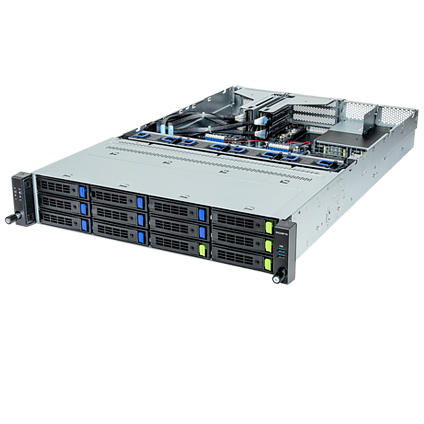

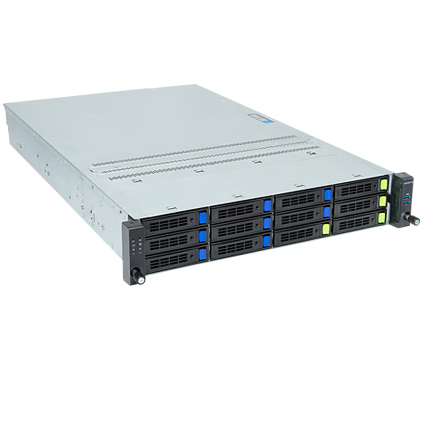

The Gigabyte R263-Z30 (rev. AAC2) is a versatile 2U server powered by AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ technology, 12x DIMMs 12-Channel RDIMM DDR5 memory. For storage capabilities the R263-Z30 (REV. AAC2) has has 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swap drive bays, 8 x 3.5"/2.5" SATA/SAS hot-swap drive bays. For expansion purposes there are 2 x FHHL PCIe 5.0 x16, 3 x FHHL PCIe 4.0 x16 and x8, and 2 x OCP 3.0 Gen5 x16 slots. The Gigabyte Server R263-Z30 (rev. AAC2) is equipped with 4 x 80mm 18,300 RPM cooling fans, and 1300W redundant 80 Plus platinum power supplies.
