Gigabyte R263-Z32 (rev. AAD1) AMD EPYC™ 9004 2U 24-Bay NVMe/SATA/SAS Rack Server
Features:
- 2U Rack Mount Server
- AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
- Single processor, 5nm technology
- 12-Channel RDIMM DDR5 per processor, 12 x DIMMs
- Dual ROM Architecture
- 12 x Hot-Swap 2.5” Gen4 NVMe Drive Bays
- 12 x Hot-Swap 2.5” SATA/SAS Drive Bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP 3.0 Gen5 x16 slots
- Front I/O Ports: 2 x USB 3.2

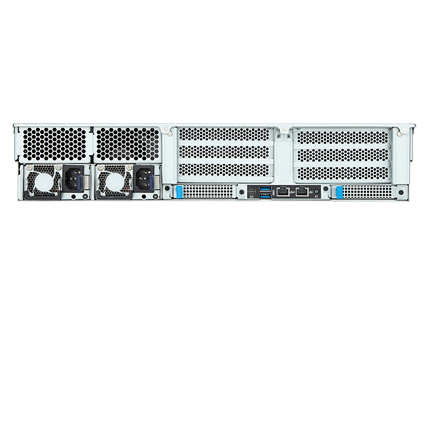

- Rear I/O Ports: 2 x USB 3.2, 1 x Mini-DP, 1 x GbE LAN, 1 x MLAN, 1 x ID Button with LED
- 4 x 80x80x38mm 18,300 RPM cooling fans
- 1600W Redundant 80 Plus platinum power supplies
- Dimension: 17.24" x 28" x 3.45" (438mm x 710mm x 87.5mm)
The Gigabyte R263-Z32 (rev. AAD1) is a versatile 2U server powered by AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ technology, 12x DIMMs 12-Channel RDIMM DDR5 memory. For storage capabilities the R263-Z32 (REV. AAD1) has 12 x 2.5” Gen4 NVMe hot-swap drive bays and 12 x 2.5” SATA/SAS hot-swap drive bays. For expansion purposes there are 2 x FHHL PCIe 5.0 x16 slots, and 2 x OCP 3.0 Gen5 x16 slots. The Gigabyte Server R263-Z32 (rev. AAD1) is equipped with 4 x 80mm 18,300 RPM system fans, and 1600W redundant 80 Plus platinum power supplies.
Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.
Base Configurations
