RMS401 4U Rackmount Computer
Features:
- 4U Industrial Rack Mount Computer
- 6 Drive Bays (3 x 5.25", 3 x 3.5" Drive Bays and 1 x Slim Optical Drive Bay)
- Easy-swap 120mm Front Fan with Filter
- Isolated Anti-Vibration Drive Cage
- Optional robust front door with filter for rugged environment
RMS401 is a 4U rackmount computer with shock isolated design, dust-proof filter on compact chassis size, makes it ideal for space constrained industrial applications.
RMS401 is equipped with 3x 5.25", 1x 3.5", one slim ODD external drives bays, 4x 3.5" internal. A card retainer to hold low profile and full height add-on cards. With optional 3X5.25" drive cage and hot-swap removable kit, RMS401 can be a data center with 16 and more SSDs.Need a Custom Solution Not Offered Online? Click the Button Below.
Search Filter | Clear All |
Processor | Chipset | Memory | Expansion Slots | Features |
|
|
|
|
|
Base Configurations

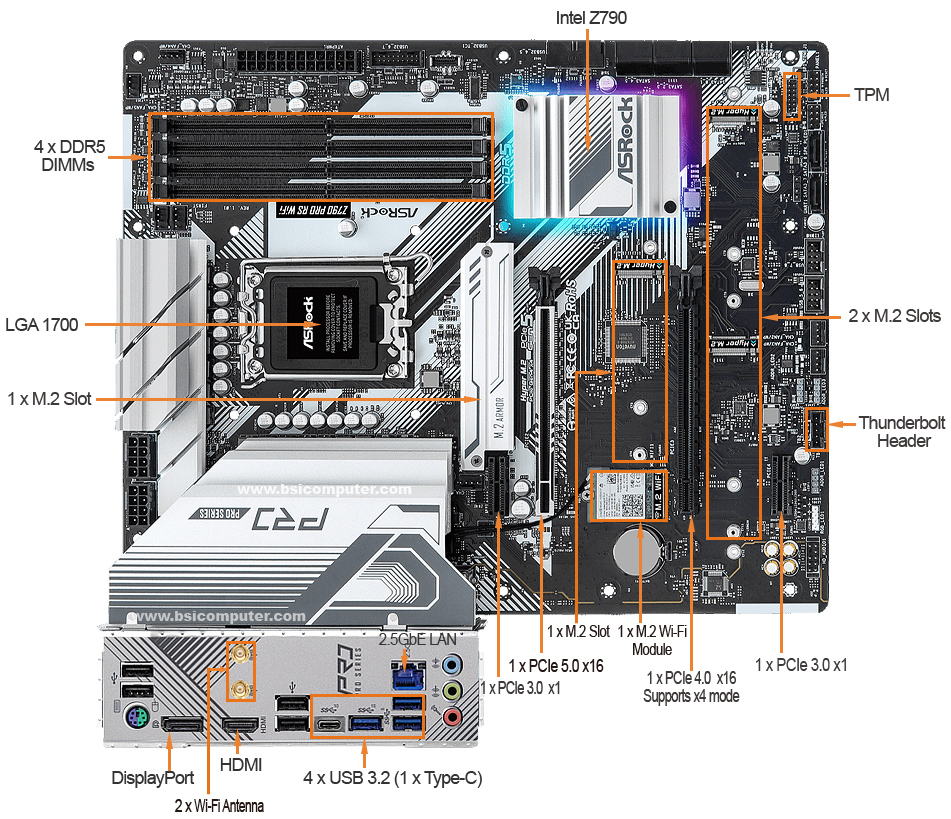

- ASRock Z790 PRO RS ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots, 1x M.2 Key E
- 4 x USB3.2 Gen 2 (1 Type C)
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
- ASUS PRIME Z790-P WIFI ATX Motherboard
- 12th/13th/14th Gen Intel Processor
- Intel Z790 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- 3 x USB3.2 Type A, 1 x USB3.2 Type C
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
- ASUS PRIME Z690-A Motherboard
- 12th/13th Gen Intel Processor
- Intel Z690 Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 4 x M.2 Slots
- 6 x USB3.2 Type A, 2 x USB3.2 Type C
- 1 x Thunderbolt Header
- 1 x TPM Header
- Built-in 2.5GbE LAN
- Gigabyte MS03-CE0 Motherboard
- 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- 3 x SlimSAS with 12 x SATA 6Gb/s Ports
- 7 x PCIe 5.0 x16 and x8 Expansion Slots
- Built-in 2 x Gigabit LAN, 1 x MLAN
- Supermicro X13SEI-F Motherboard
- 4th Gen Intel® Xeon® Scalable processors
- Intel® C741 Chipset
- DDR5 ECC Reg Memory
- M.2 NVME Solid State Drive
- 1 x TPM header
- Built-in 2 x Gigabit LAN & IPMI LAN
2 x 10GbE LAN (X13SEI-TF, Optional)
- GIGABYTE MW53-HP0 Motherboard
- Intel® Xeon® W-2400 Processor, Intel® Xeon® W-3400 Processor
- Intel® W790 Chipset
- DDR5 ECC Registered Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots, 1 x M.2 key E for Wi-Fi
- 1 x TPM Header
- Built-in 2 x 2.5GbE LAN, 1x MLAN
- Supermicro X12SAE-5 Motherboard
- Intel® Core™ i5-11400 Processor (12M Cache, 2.60 GHz)
Up to Intel Core i9 Processor (Optional)
Intel Xeon W-1300 Series Processor (Optional) - Intel® W580 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 3 x M.2 Slots
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN, 1 x IPMI LAN
- Gigabyte MU72-SU0 Motherboard
- 3rd Generation Intel® Xeon® Scalable Processors
- Intel® Xeon® W-3300 Processor
- Intel® C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 4 x PCIe 4.0 x16, 3 x PCIe 4.0 x8 (in x16)
- Built-in 2 x Gigabit LAN, 1 x Management LAN
- Supermicro X12DPL-i6 Motherboard
Supermicro X12DPL-NT6 Motherboard (Optional) - 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
- Intel® C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN & IPMI LAN
Optional Dual 10GBase-T LAN & IPMI LAN (X12DPL-NT6)
- Supermicro X11SAE Motherboard
- Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz)
- Up to Intel® Xeon® processor E3-1200 v6 Series Processor
- Intel C236 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- Built-in Dual Gigabit LAN
- Supermicro X11SCA-F Motherboard
- Intel® Celeron® Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel® Core i9 Processor
- Up to Intel® Xeon® E Processor
- Intel® C246 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 Slots
- 4 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- IMB-R680EA Industrial Motherboard
- 3 to 5 Years Life Time
- 12th/13th Gen Intel Processor
- Intel® R680E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0 (Optional)
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
- IMB-Q670EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q1' 2037
- 12th/13th Gen Intel Processor
- Intel® Q670E Chipset
- DDR5 Memory
- M.2 NVME Solid State Drive
- 2 x M.2 M Key, 1 x M.2 E Key for Wi-Fi , 1 x M.2 B Key for Cellular
- 4 x RS232, 2 x RS232/422/485
- 6 x USB3.2 Gen 2
- TPM 2.0 Onboard
- Built-in 3 x 2.5GbE LAN
- IMB-C621AA Industrial Motherboard
- 3 to 5 Years Life Time
- 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- DDR4 ECC Reg Memory
- M.2 NVME Solid State Drive
- 3 x PCIe x16, 3 x PCIe x8
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN
- IMB-Q470EJT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2035
- 10th/11th Gen Intel® Processor
- Intel® Q470E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- TPM 2.0
- 2 x M.2 M Key, 1 x M.2 E Key, 1 x M.2 B Key
- Built-in 1 x 1GbE LAN, 1 x 2.5GbE LAN
- IMB-W480EA Industrial Motherboard
- 3 to 5 Years Life Time
- Intel® Celeron® G5905 Processor (4M Cache, 3.50 GHz)
- Up to Intel® Core i9 Processor and Intel® Xeon® W-1200 Series Processor
- Intel® W480E Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 2 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key
- TPM 2.0 Module (Optional)
- Built-in Dual Gigabit LAN
- IMB-C246JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel® Celeron® Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel® Core i9 Processor and Intel® Xeon® E Series Processor
- Intel® C246 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 8 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- TPM Onboard
- IMB-C246A Industrial Motherboard
- 3 to 5 Years Life Time
- Intel® Celeron® Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel® Core i9 Processor and Intel® Xeon® E Series Processor
- Intel® C246 Chipset
- DDR4 Memory
- SATA Hard Drive
- TPM 2.0 Module (Optional)
- 4 x RS232, 2 x RS232/422/485
- 4 x USB 3.1 Ports
- Built-in Dual Gigabit LAN
- IMB-H410JT2 Industrial Motherboard
- Long-Life Lifecycle Through Q2' 2030
- 10th Gen Intel® Processor
- Intel® H410 Chipset
- DDR4 Memory
- M.2 SATA Solid State Drive
- 4 x RS232, 2 x RS232/422/485
- 1 x M.2 M Key 2242/2280
- TPM 2.0 Onboard
- Built-in 1 x GbE LAN, 1 x 2.5GbE LAN
- IMB-Q370JT2 Motherboard
- Long-Life Lifecycle Through Q2' 2033
- Intel® Celeron® Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel® Core i9 Processor
- Intel® Q370 Chipset
- DDR4 Memory
- M.2 NVME Solid State Drive
- 1 x M.2 M Key, 1 x M.2 E Key
- 6 x USB 3.1 Ports
- TPM Onboard
- Built-in Dual Gigabit LAN
- IMB-H310A Motherboard
- 3 to 5 Years Life Time
- Intel® Celeron® Processor G4900 (2M Cache, 3.10 GHz)
- Up to Intel® Core i9 Processor
- Intel® H310 Chipset
- DDR4 Memory
- SATA Hard Drive
- TPM 2.0 Module (Optional)
- 4 x RS232, 2 x RS232/422/485
- 4 x USB 3.1 Ports
- 1 x PCIe Mini Card Slot
- Built-in Dual Gigabit LAN
