Features:

• CE, FCC, LVD, EN 45545-2 and EN 50155 certified; ISO7637-2 Compliant
• Intel Atom® x5-E3940 processor
• 1 x DDR3L SO-DIMM, up to 8GB
• 1 x 2.5” SATA Drive Bay (9.5 mm Height)
• TPM 2.0
• Supports 9 to 36 VDC and 12/24 VDC Typical In-vehicle Power Input
• Supports 24VDC/36 to 110VDC for Railway Power Input
• Compact Size with Multiple COM, CANBus, and DIO for Communication
• Smart Ignition for Power On/Off Schedule, Vehicle Battery Protection, and Different Power Modes
• Suitable for Transportation Gateway Applications
• Fanless and Wide Operating Temperatures from -40°F to +140°F

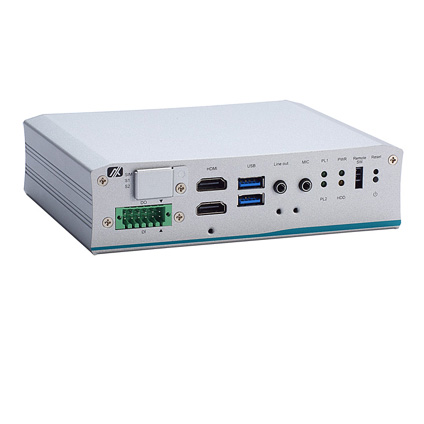

The tBOX110 is an advanced vehicle fanless embedded system specifically designed to meet the rigorous demands of transportation applications. With certifications such as CE, FCC, LVD, EN 45545-2, and EN 50155, along with compliance to ISO7637-2 standards, it guarantees reliable and secure operation in challenging environments. Powered by an Intel Atom® x5-E3940 processor, the tBOX110 offers excellent processing capabilities for data-intensive tasks. Its fanless design ensures silent and efficient operation, while the wide operating temperature range of -40°C to +70°C enables reliable performance in extreme conditions. The system supports various power input options, including 9 to 36VDC and 12/24VDC typical in-vehicle power input, as well as 24 to 110VDC for railway power input. With a compact size and multiple COM, CANBus, and DIO interfaces, it provides versatile connectivity options for seamless communication. The tBOX110 also features Smart Ignition, allowing for power on/off scheduling and vehicle battery protection. With its robust features and suitability for transportation gateway applications, the tBOX110 is an ideal solution for reliable and efficient data processing in the transportation industry.
