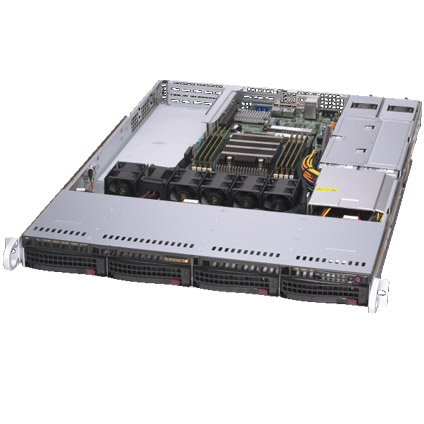

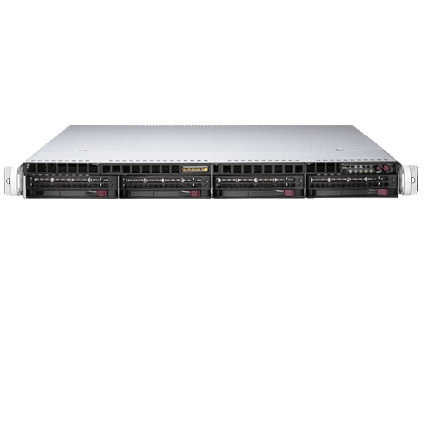

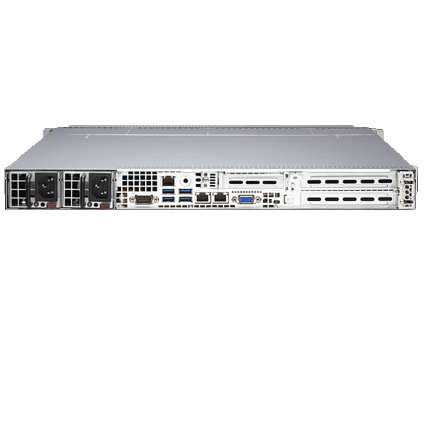

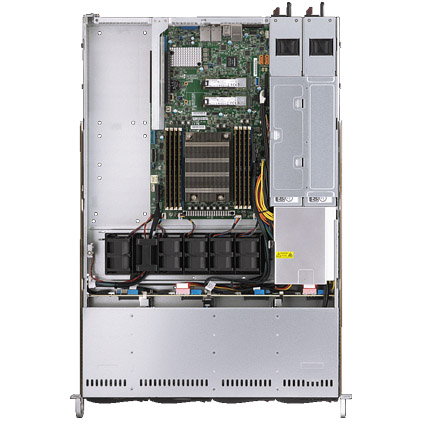

Supermicro A+ Server 1014S-WTRT w/ 4x 3.5" Drive Bays

Features:


DB Processing & Storage
Data Center Applications
Firewall Applications
  • 1U Rackmount Server
  • Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM; 8x DIMM Slots
  • 4x 3.5" Hot-swap SATA3 Drive Bays, Optional 4x U.2 NVMe (PCI-E 3.0) Drive Support via Additional Kit for NVMe Devices
  • 1x Slim DVD-ROM Drive(Optional)
  • 2x PCI-E 4.0 x16 (FHFL) Slots, 1x PCI-E 4.0 x16 (LP) Slot
  • 1x VGA, 5x USB 3.0, 2x SuperDOM (Disk on Module) Ports
  • 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
  • Integrated IPMI 2.0 + KVM with dedicated LAN
    Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • 4x 40mm Counter-rotating PWM Fans, 2x Fans for Cooling AOC
  • 500W Redundant Platinum Level Power Supplies /li>
  • 25.6" Depth Rack Mount Chassis

The Supermicro A+ Server 1014S-WTRT 25.6" depth 1U Rackmount server features AMD EPYC™ 7003/7002 Series Processor, supports up to 2.0TB DDR4 ECC Registered Memory, dual 10GBase-T LAN on-board. The Supermicro Server 1014S-WTRT comes with four 3.5" hot-swap drive bays, two M.2 slot, four 40mm cooling fans, and is equipped with 500W redundant platinum Level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

Supermicro 1U Rack Mount Server With H12SSW-NT Motherboard


  • Supermicro H12SSW-NT Motherboard
  • AMD EPYC™ 7003
  • 16GB(2x 8GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 500W Redundant Power Supply, Platinum Level Power Supplies

Barebone Only:

$1,575.00

Configured:

$3,329.00

Customize
