Supermicro SuperServer 1029P-WTR w/ 8x 2.5" SAS/SATA Drive Bays Redundant Power Supplies


Web Server, Firewall Apps
Corporate-Wins, DNS, Print, Login
Gateway, provisioning servers
Compact Network Appliance
Cloud Computing
  • 1U Rackmount Server
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset

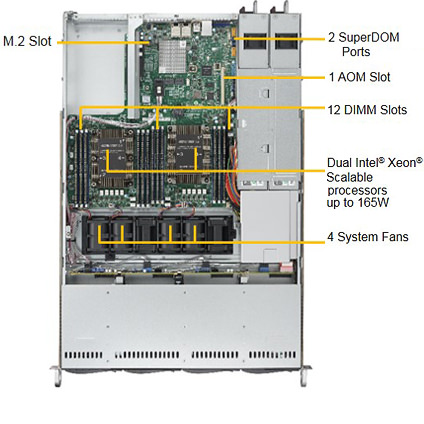

  • Up to 1.5TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 12x DIMM slots

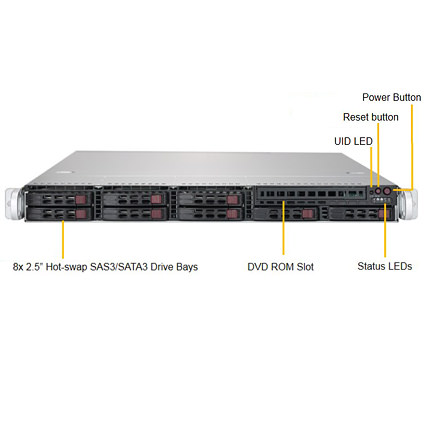

  • 8x 2.5" Hot-swap SAS/SATA Drive Bays
  • Slim DVD-ROM Drive(Optional)
  • 2x PCI-E 3.0 x16 (FHHL) Slots
    1x PCI-E 3.0 x8 (LP) Slot
    1x PCI-E 3.0 x16 for Add-on-Module (AOM)
    1x PCI-E M.2 SSD slot
  • 2x Gigabit Ethernet LAN Ports via Intel X722

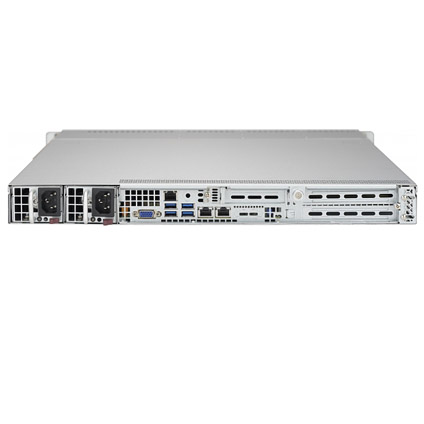

  • 1x VGA, 4x USB 3.0 (Rear)
  • 4x 40mm Counter-rotating PWM Fans
  • 2x SuperDOM (Disk on Module) Ports
  • 700W/750W Redundant Power Supplies, Platinum Level High-efficiency
  • 23.5" Depth Rack Mount Chassis

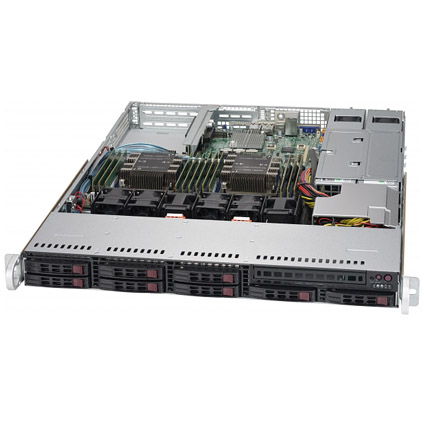

The Supermicro 1029P-WTR 23.5" depth 1U Rackmount server features dual Intel® Xeon® Scalable Processor, supports up to 1.5TB DDR4 ECC 3DS Memory, built-in two Gigabit Ethernet ports and IPMI LAN port. The Supermicro Server 1029P-WTR comes with eight 2.5" hot-swap drive bays. Is equipped with four 40mm counter-rotating fans, and 700W/750W redundant platinum Level power supplies.
