Supermicro SuperServer 1029TP-DC0R 1U 2-Node TwinPro Server


Mission-critical Applications
High Availability Storage
Appliance Platform

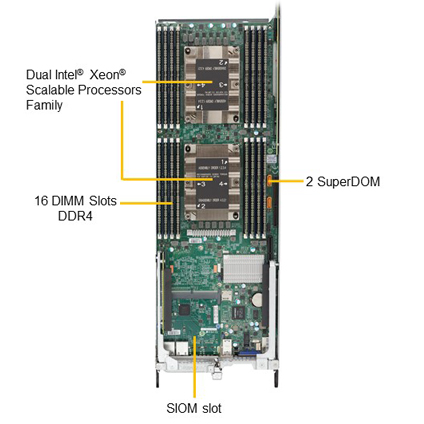

Two Hot-pluggable Systems (Nodes) in a 1U Form Factor. Each Node Supports the Following:
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 2TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 16x DIMM Slots

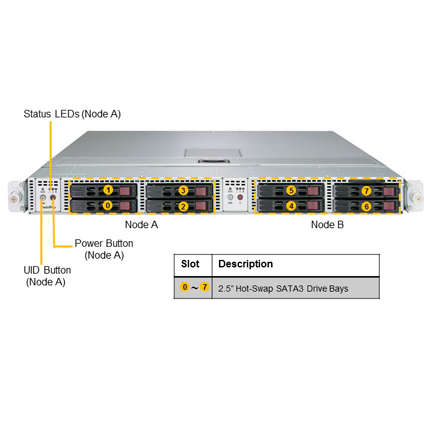

  • 4x 2.5" Hot-swap SAS3/SATA3 Drive Bays
  • Broadcom 3008 SAS3 controller; SW RAID
  • 2x PCI-E 3.0 x16 Slots
  • 2x M.2 Carrier
  • 2x SuperDOM (Disk on Module) Ports
  • Flexible Networking Support via SIOM; Dedicated IPMI 2.0 LAN
  • 3x Counter-rotating PWM Fans
  • 1000W Redundant Power Supply, Titanium Level
  • 28.25" Depth Rack Mount Chassis

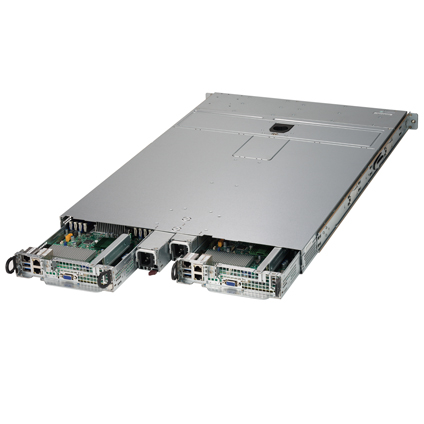

The Supermicro SuperServer 1029TP-DC0R is a 28.25" depth 1U 2-nodes high performance rackmount server. Each nodes supports dual Intel Xeon Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM memory. The 1029TP-DC0R 1U Racknount Server comes with 12x hot-swap 2.5" SAS3/SATA3 drive bays, three counter rotating fans, and is equipped with 1000W redundant Titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DPT-PS Motherboard

  • 2x Supermicro X11DPT-PS Motherboard
  • 4x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • 64GB(8x 8GB) DDR4 ECC Reg Memory
  • 12x 2.5" Hot-swap SAS3/SATA3 Drive Bays
  • 2x 1.0TB SATA 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • 2x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:
