Supermicro SuperServer 1029TP-DTR 1U 2-Node TwinPro Server


Mission-critical Applications
High Availability Storage
Appliance Platform

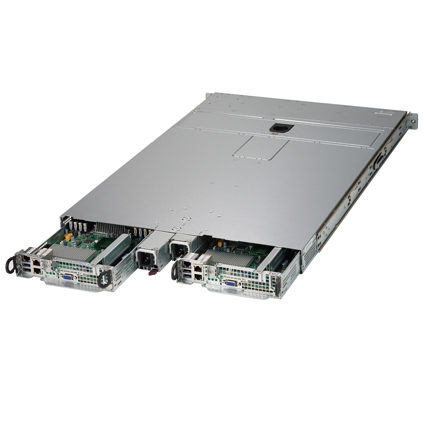

Two Hot-pluggable Systems (Nodes) in a 1U Form Factor. Each Node Supports the Following:

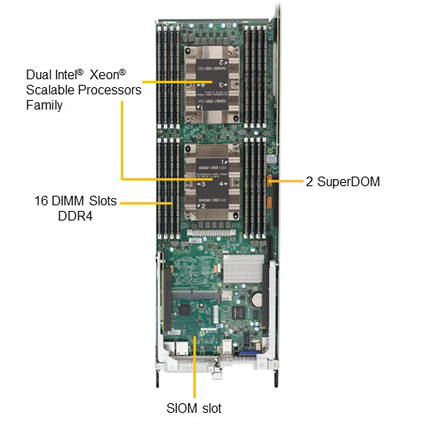

  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 2TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 16x DIMM Slots

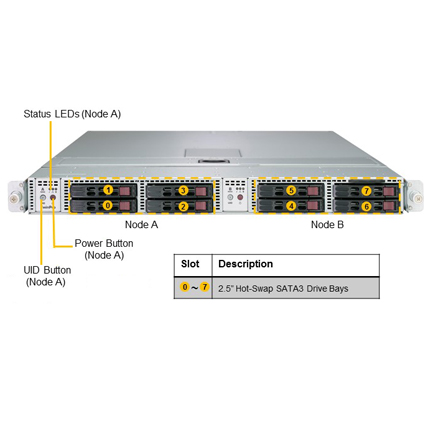

  • 4x 2.5" Hot-swap SATA3 Drive Bays
  • 2x PCI-E 3.0 x16 Slots
  • 2x SuperDOM (Disk on Module) Ports
  • 2x M.2 Carrier
  • Flexible Networking Support via SIOM; Dedicated IPMI 2.0 LAN
  • 3x Counter-rotating PWM Fans
  • 1000W Redundant Power Supply, Titanium Level
  • 28.25" Depth Rack Mount Chassis

The Supermicro SuperServer 1029TP-DTR is a 28.25" depth 1U 2-nodes high performance rackmount server. Each nodes supports dual Intel Xeon Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM memory. The 1029TP-DTR 1U Racknount Server comes with 12x hot-swap 2.5" SATA3 drive bays, three counter rotating fans, and is equipped with 1000W redundant Titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DPT-PS Motherboard

  • 2x Supermicro X11DPT-PS Motherboard
  • 4x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • 64GB(8x 8GB) DDR4 ECC Reg Memory
  • 8x 2.5" Hot-swap SATA3 Drive Bays
  • 2x 1.0TB SATA 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • 2x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:
