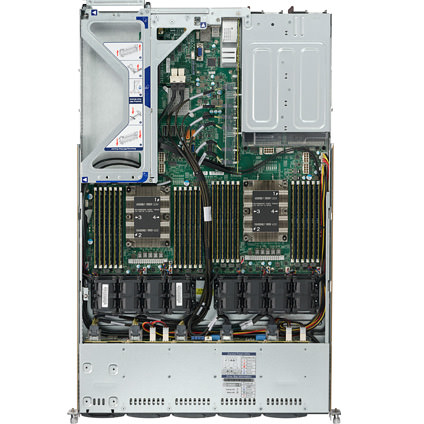

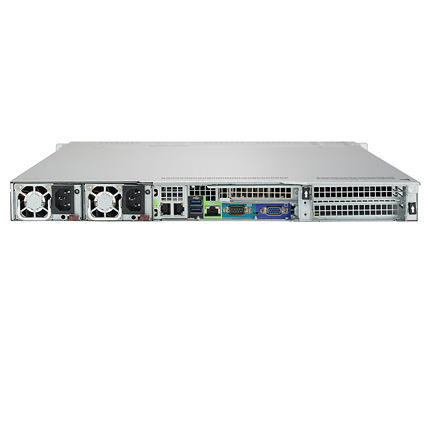

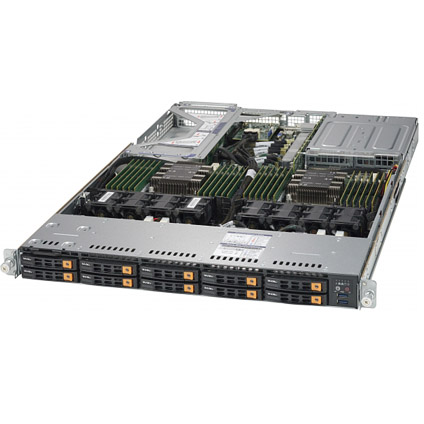

Supermicro Ultra SuperServer 1029U-TN10RT w/ 10x 2.5" NVMe Drive Bays and 2x M.2 Slots


Virtualization, Cloud Computing , High End Enterprise Server
  • 1U Rackmount Server
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

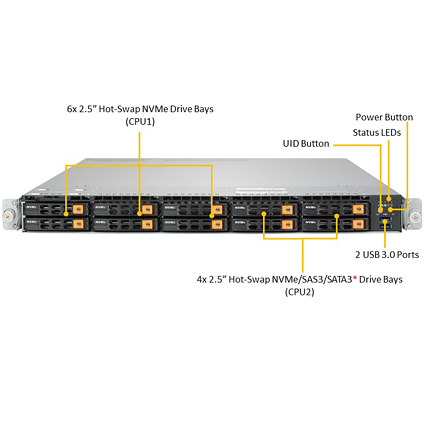

  • 10x 2.5" Hot-swap NVMe Drive Bays: (4 hybrid ports - optional SAS3 via AOC)
    2x Internal M.2 Slots (1 SATA3, 1 NVMe)
  • 2x PCI-E 3.0 x16 Full-Height 10.5" Length Slots
  • 2x 10GBase-T LAN Ports
  • 8x Heavy Duty Fans with Fan Speed Control
  • 1000W Redundant Titanium Level (96%) Power Supplies
  • 27.82" Depth Rack Mount Chassis

The Supermicro Ultra SuperServer 1029U-TN10RT is an 27.82" depth 1U Rackmount server that features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM, built-in two10GBase-T LAN ports. The 1029U-TN10RT 1U Rackmount server supports with ten 2.5" hot-swap NVMe drive bays, and two M.2 sockets, is equipped with eight heavy duty fans, and 1000W redundant Titanium level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

1U Supermicro Rack Mount Server With X11DPU Motherboard

  • Supermicro X11DPU Motherboard
  • 2x Intel® Xeon® Bronze 3206R Processor 8-Core 1.90 GHz 11MB Cache
  • Intel® C621 Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 10x 2.5" Hot-swap NVMe Drive Bays
  • 4x 960GB 2.5" 7450 PRO NVMe PCIe 4.0 Solid State Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN Ports via AOC-URN6-i2XT
  • 1000W Redundant 80 Plus Titanium Power Supply
