Supermicro Ultra SuperServer 1029U-TR25M w/ 10x 2.5" SATA3 and 2x 25GbE SFP28 Ports
Features:
Virtualization, Cloud Computing , High End Enterprise Server
- 1U Rackmount Server
- Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
- Intel® C621 Express Chipset

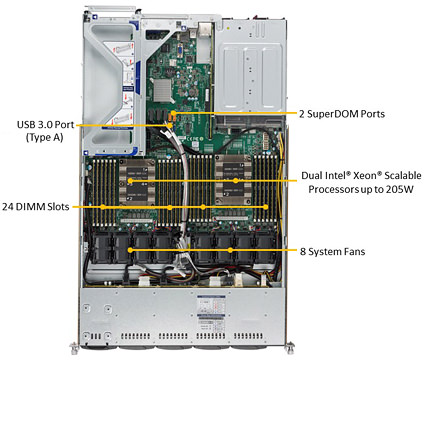

- Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

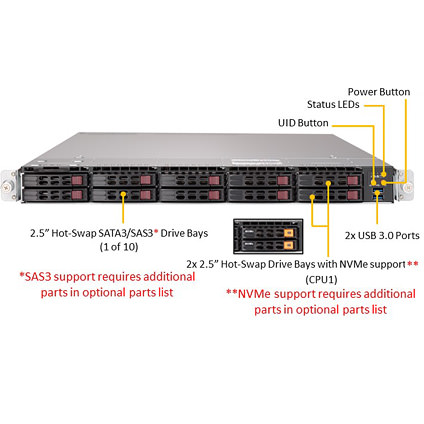

- 10x 2.5" Hot-swap SATA3 Drive Bays: 10 SATA3 (2 Hybrid Ports: 2 NVMe Optional)
- 2x PCI-E 3.0 x16 Full-Height 10.5" Length Slots
1x PCI-E 3.0 x8 Low-profile Slot
1x PCI-E 3.0 x16 Low-profile Slot (Internal) - 2x 25GbE SFP28 Ethernet Ports
- 8x Heavy Duty Fans with Fan Speed Control
- 750W Redundant Platinum Level (94%+) Power Supplies
- 27.8" Depth Rack Mount Chassis

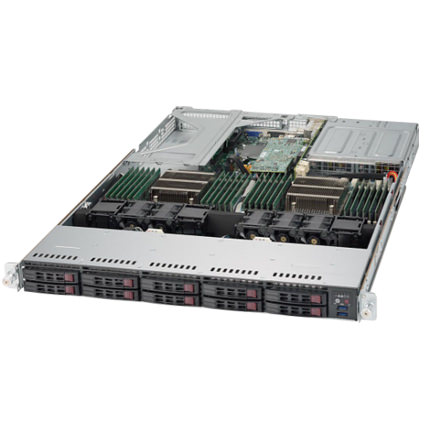

The Supermicro Ultra SuperServer 1029U-TR25M is an 27.8" depth 1U Rackmount server that features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM, supports two 25GbE SFP28 Ethernet ports via AOC-URN4-M2TS-O add-on card. The 1029U-TR25M 1U Rackmount server comes with ten 2.5" hot-swap SATA3 drive bays, is equipped with eight heavy duty fans, and 750W redundant platinum level power supply.
Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.
Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.
Barebone & Base Configurations
1U Supermicro Rack Mount Server With X11DPU Motherboard
- Supermicro X11DPU Motherboard
- 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
- Intel® C621 Chipset
- 32GB(4x 8GB) DDR4 ECC Registered Memory
- 10x 2.5" Hot-swap SATA3 Drive Bays
- 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
- Built-in Video
- Built-in 2x 25GbE SFP28 Ethernet Ports via AOC-URN4-M2TS-O (Mellanox ConnectX-4 Lx EN)
- 750W Redundant 80 Plus Platinum Power Supply
