Supermicro UP Storage SuperServer 110P-NTR10


Cloud Computing
All Flash Storage
CDN Optimized
  • 1U Rackmount Server
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP
  • Intel® C621A Chipset

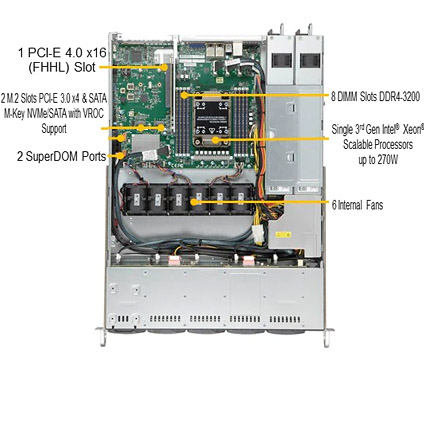

  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

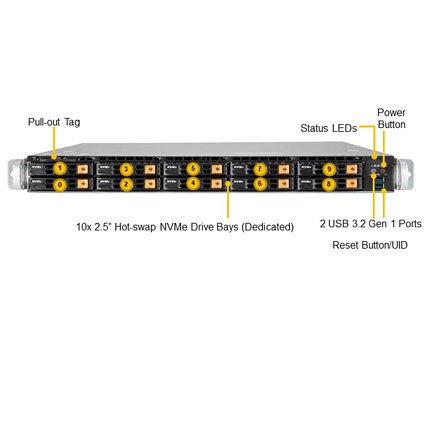

  • 10x Hot-swap 2.5'' All NVMe tool-less drive bays
  • Onboard 2x NVMe/SATA M.2 slots
  • 1x PCI-E 4.0 x16 (FHFL) slots

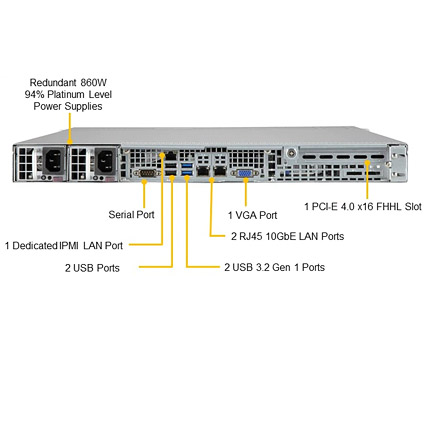

  • Intel® Ethernet Controller X550 2x 10GbE RJ45
  • 6x 40mm Heavy duty fans with optimal fan speed control
  • 860W Redundant Platinum Power Supply
  • 23.5" Depth Rack Mount Chassis

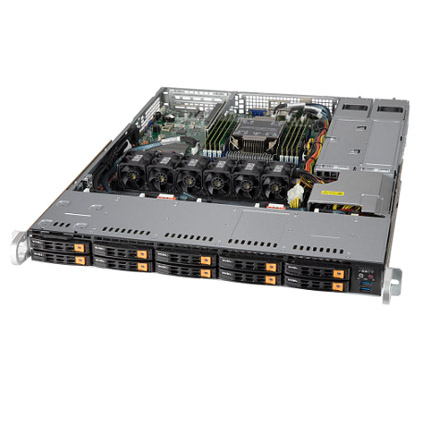

The Supermicro SuperServer 110P-NTR10 1U Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, up to 3.0TB Memory, two M.2 slots and dual 10GBase-T LAN ports onboard. The Supermicro Server 110P-NTR10 comes with ten 2.5" hot-swap all NVMe tool-less drive bays, six 40mm heavy duty fans, and is equipped with 860W redundant platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

Supermicro Server 110P-NTR10 With X12SPO-NTF Motherboard

  • Supermicro X12SPO-NTF Motherboard
  • Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 16GB(2x 8GB) DDR4 ECC Registered Memory
  • 10x Hot-swap 2.5'' All NVMe Tool-less Drive Bays
  • 4x 1.0TB Intel® SSD DC P4510 Series U.2 PCIe 3.1 x4 NVMe Solid State Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 860W Redundant Power Supply, Platinum Level High-efficiency
