Supermicro UP SuperServer 110P-WTR w/ 10x 2.5" SATA Drive Bays


Cloud Computing
Enterprise Server
Data Center Optimized
Database Processing and Storage
  • 1U Rackmount Server
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
  • Intel® C621A Chipset
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

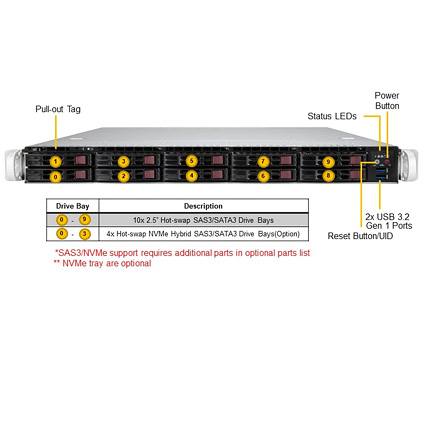

  • 10x hot-swap 2.5'' SATA3 drive bays with 4 hybrid NVMe/SATA drive bays, SAS3 with additional SAS controller card
  • Onboard 1x NVMe/SATA M.2
  • 2x PCI-E 4.0 x16 (FHFL) slots, 1x PCI-E 4.0 x16 (LP) slot
  • Intel® Ethernet Controller X550 2x 10GbE RJ45
  • 5x 40mm Counter-rotation PWM Cooling Fans
  • 750W Redundant Platinum Power Supply
  • 23.5" Depth Rack Mount Chassis

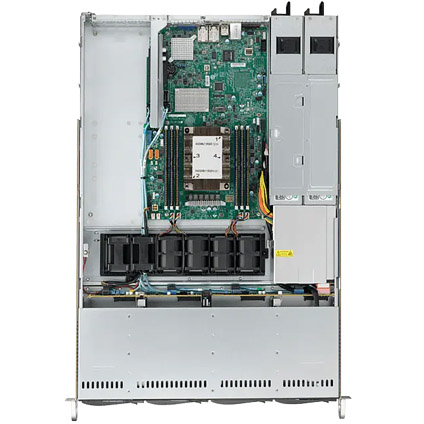

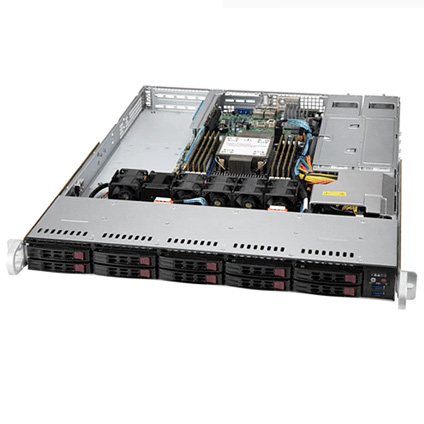

The Supermicro SuperServer 110P-WTR 1U 23.5" depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, up to 3.0TB DDR4 ECC 3DS LRDIMM Memory, M.2 slot and dual 10GBase-T LAN ports. The Supermicro Server 110P-WTR comes with ten 2.5" hot-swap SATA3/NVMe drive bays, five 40mm Counter-rotation PWM fans, and is equipped 750W redundant platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

1U Supermicro Rack Mount Server With X12SPW-TF Motherboard

  • Supermicro X12SPW-TF Motherboard
  • Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 8GB DDR4 ECC Registered Memory
  • 10x 2.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 750W Redundant Power Supply, Platinum Level High-efficiency
