Supermicro A+ Server 1114S-WTRT w/ 10x 2.5" Drive Bays AMD EPYC™ 7003/7002 Series Processor

Supermicro A+ Server 1114S-WTRT w/ 10x 2.5" Drive Bays AMD EPYC™ 7003/7002 Series Processor


DB Processing & Storage
Data Center Applications
Firewall Applications
  • 1U Rackmount Server
  • Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM; 8x DIMM Slots
  • 10x 2.5" Hot-swap SATA3 Drive Bays, Optional 2x U.2 NVMe (PCI-E 3.0) Drive Support via Additional Kit for NVMe Devices
  • 2x PCI-E 4.0 x16 (FHFL) Slots, 1x PCI-E 4.0 x16 (LP) Slot
  • 1x VGA, 7x USB 3.0, 2x SuperDOM (Disk on Module) Ports
  • 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
  • Integrated IPMI 2.0 + KVM with dedicated LAN
    Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • 4x 40mm Counter-rotating PWM Fans, 2x Fans for Cooling AOC
  • 500W Redundant Platinum Level Power Supplies /li>
  • 23.5" Depth Rack Mount Chassis

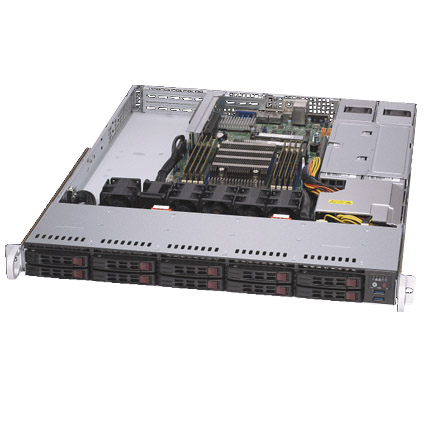

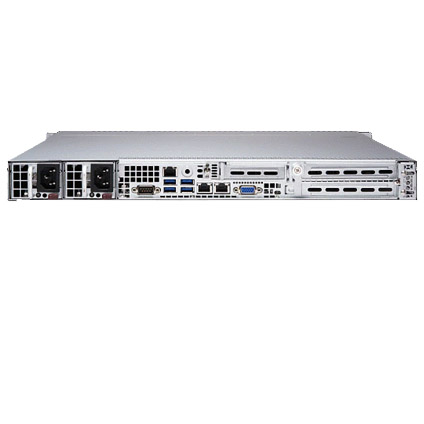

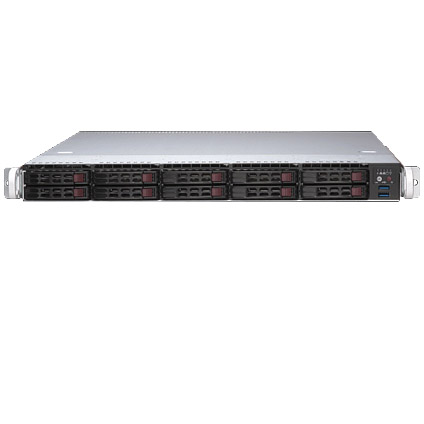

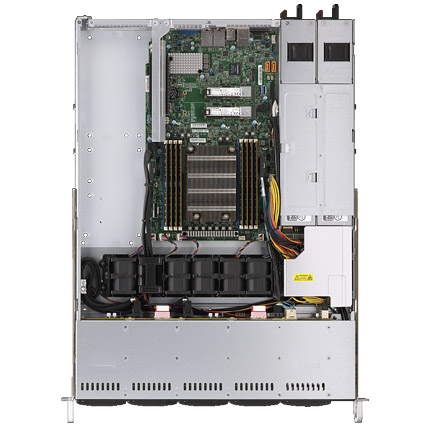

The Supermicro A+ Server 1114S-WTRT 23.5" depth 1U Rackmount server features AMD EPYC™ 7003/7002 Series Processor, supports up to 2.0TB DDR4 ECC Registered Memory, two M.2 slots and two 10GBase-T LAN ports on-board. The Supermicro Server 1114S-WTRT comes with ten 2.5" hot-swap drive bays, four 40mm cooling fans, and is equipped with 500W redundant platinum Level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

Supermicro 1U Rack Mount Server With H12SSW-NT Motherboard

  • Supermicro H12SSW-NT Motherboard
  • AMD EPYC™ 7003
  • 16GB(2x 8GB) DDR4 ECC Registered Memory
  • 10x 2.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 500W Redundant Power Supply, Platinum Level Power Supplies

Barebone Only:
