Supermicro CloudDC SuperServer 120C-TN10R

Features:


Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes
  • 1U Rackmount Server

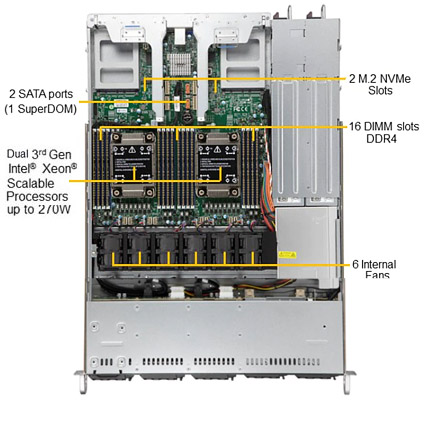

  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

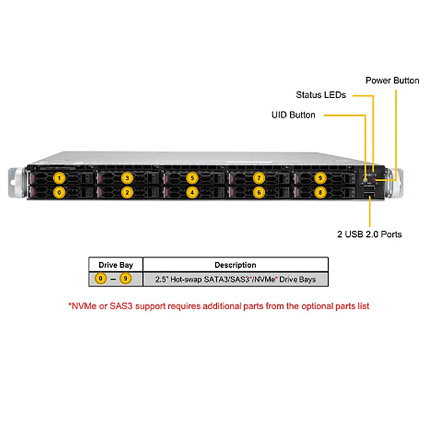

  • 10x 2.5" Hot-swap NVMe/SATA/SAS Drive Bays
  • 2x PCI-E 4.0 x16 FHHL; 2x PCI-E 4.0 x16 AIOM (OCP 3.0); 2x PCI-E 3.0 x2 NVMe M.2

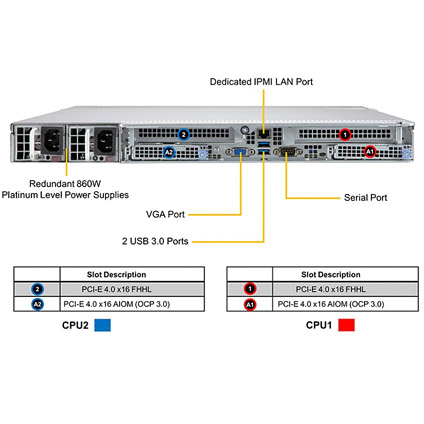

  • 1x VGA, 1x COM, 2x USB 3.0 (Rear), 2x USB 2.0 (Front)
  • Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  • 6x Counter-rotating 4 cm PWM fans with optimal fan speed control, 2x air shrouds
  • 860W Redundant Platinum Power Supply
  • 23.5" Depth Rack Mount Chassis

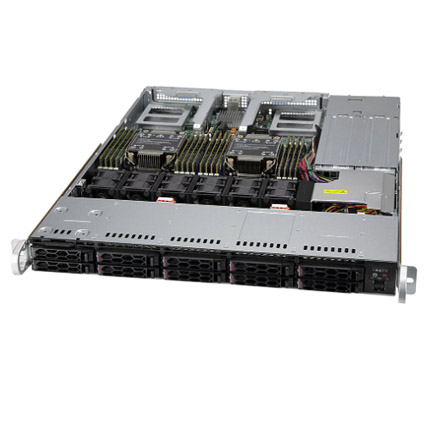

The Supermicro SuperServer 120C-TN10R 1U 23.5" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 6.0TB DDR4 RDIMM/LRDIMM Memory, two NVMe M.2 slots. The Supermicro Server 120C-TN10R comes with 10x 2.5" hot-swap NVMe/SATA/SAS drive bays, six 40mm counter-rotating fans, and is equipped 860W redundant platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

1U Supermicro Rack Mount Server With X12DDW-A6 Motherboard


  • Supermicro X12DDW-A6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 10x 2.5" Hot-swap NVMe/SATA/SAS Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • 860W Redundant Power Supply, Platinum Level High-efficiency

Configured:

$4,545.00

Customize
