Supermicro GPU SuperServer 120GQ-TNRT Dual 3rd Gen Intel® Xeon® Processor System with 4 PCIe GPUs

Features:


Scientific Virtualization
High Performance Computing
Rendering
AI/Deep Learning Training
  • 1U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors.
  • Intel® C621A Chipset
  • 16 DIMMs; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  • 1 M.2 NVMe for boot drive

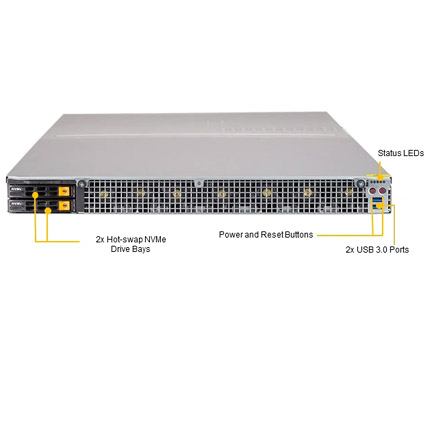

  • 2x 2.5" NVMe Hot-swap drive bays; 2x 2.5" SATA Internal Fixed drive bays
  • 6x PCI-E 4.0 x16 slots (4 FHFL & 2 LP), Supports up to 4x Double-wide GPUs
  • 9x Counter Rotating Fans with Optimal Fan Speed Control
  • 2x 2000W Redundant Titanium Level Power Supplies
  • 35.2" Depth Rack Mount Chassis

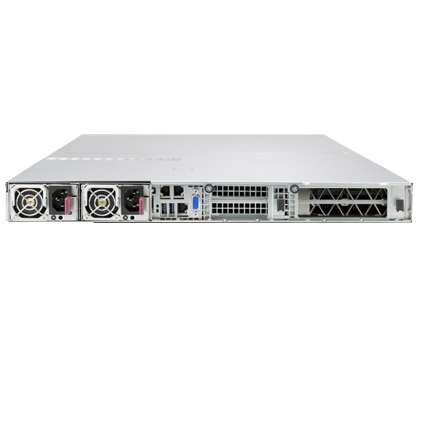

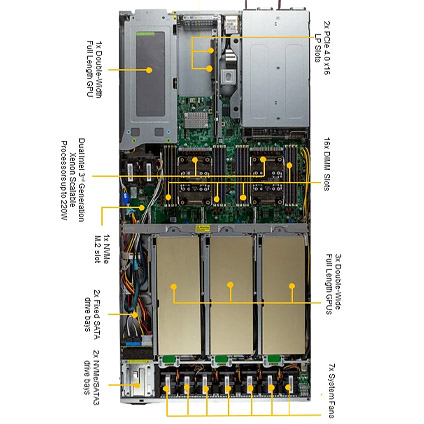

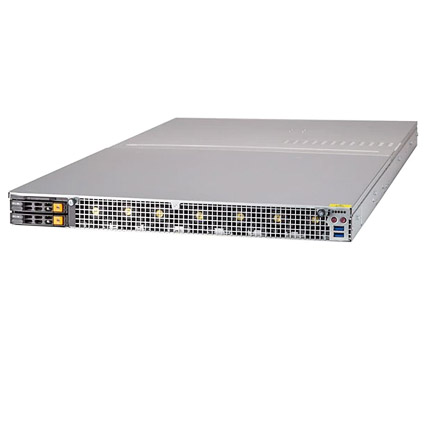

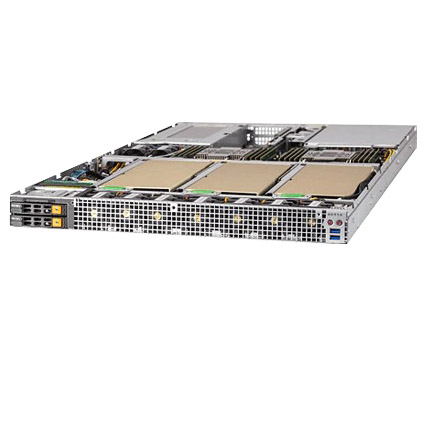

The Supermicro SuperServer 120GQ-TNRT 1U 35.2" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM. The Supermicro Server 120GQ-TNRT supports up to four double-wide GPUs. two 2.5" hot-swap NVMe and two 2.5” SATA internal fixed drive bays, nine counter rotating fans, and is equipped 2x 2000W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X12DPG-AR Motherboard


  • Supermicro X12DGQ-R Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 2x 2.5" Hot-swap Drive Bays
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • 2x NVIDIA® A40 GPU Computing Accelerator - 48GB GDDR6 - PCIe 4.0 x16
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 2x 2000W Redundant Power Supply, Titanium Level

Barebone Only:

$3,749.00

Configured:

$5,899.00

Customize
