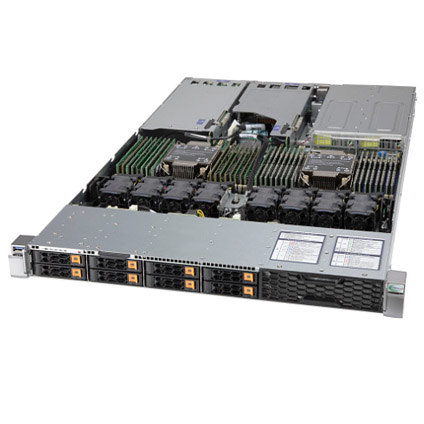

Supermicro Hyper SuperServer 120H-TNR

Features:


Virtualization
Cloud Computing
Software-defined Storage
AI Inference and Machine Learning
Enterprise Server
  • 1U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors.
  • Intel® C621A Chipset

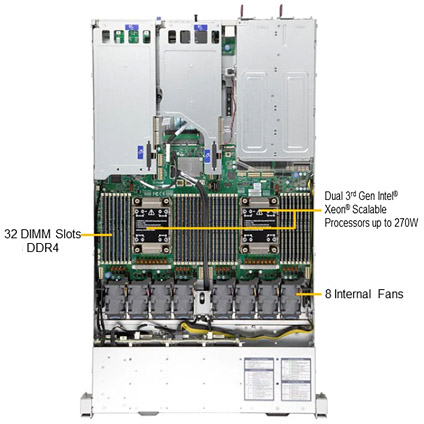

  • 32 DIMMs; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series

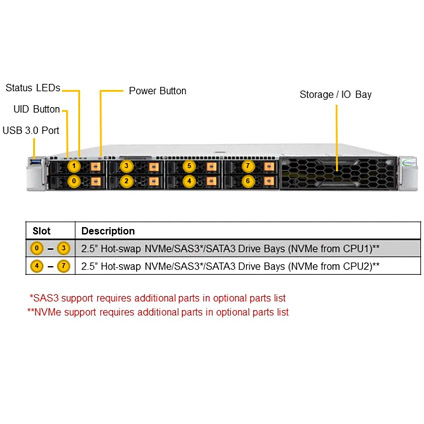

  • 8x hot-swap 2.5'' NVMe/SATA/SAS drive bays
    Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays;
    2x internal M.2 NVMe/SATA drive slots;
    Optional RAID support via storage add-on card

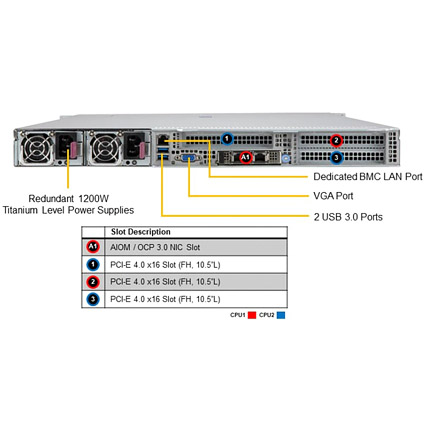

  • 3x PCI-E 4.0 x16 slots with support for GPU/Accelerator cards
  • Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  • 8x 40mm Heavy duty hot-swap fans with optimal fan speed control
  • 1200W Redundant Power Supply
  • 29.36" Depth Rack Mount Chassis

The Supermicro SuperServer 120H-TNR 1U 29.36" depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, up to 12.0TB Memory, two M.2 NVMe/SATA slots. The Supermicro Server 120H-TNR comes with eight 2.5" hot-swap NVMe/SATA/SAS drive bays, eight heavy duty hot-swap fans, and is equipped 1200W redundant power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

1U Supermicro Rack Mount Server With X12DHM-6 Motherboard


  • Supermicro X12DHM-6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 8x 2.5" Hot-swap NVMe/SATA/SAS Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • 1200W Redundant Power Supply

Configured:

$5,669.00

Customize
