Supermicro Twin SuperServer SYS-120TP-DC1TR

Supermicro Twin SuperServer SYS-120TP-DC1TR


High Performance Computing
Hyper-Converged Infrastructure
Big Data / Big Science

Two Hot-pluggable Systems (Nodes) in a 1U Form Factor. Each Node Supports the Following:
  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® C621A Chipset
  • 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  • 4x 2.5" Hot-swap SATA/SAS Drive Bays
  • Broadcom 3108 12G SAS Controller
  • 2x PCI-E 4.0 x16 (LP), 1x PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
  • Intel® X710 Dual port 10GBase-T LAN onboard
  • 6x Counter-rotating 40m PWM Fans with Optimal Fan Speed Control (Per System)
  • ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM Ports
    SATA (6Gbps); 4 Slots Per Node; RAID 0, 1, 5, 10 Support.
  • 1000W Redundant Titanium Level Power Supply
  • 28.25" Depth Rack Mount Chassis

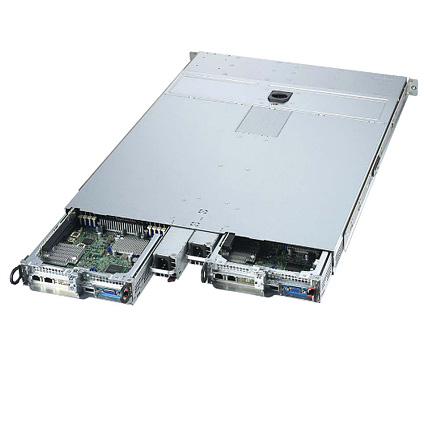

The Supermicro Twin SuperServer 120TP-DC1TR is a 28.25" depth 1U 2-nodes high performance rackmount server. Each nodes supports dual 3rd Gen. Intel Xeon Scalable Processor, up to 4.0TB DDR4 ECC RDIMM/LRDIMM memory. The 120TP-DC1TR 1U Racknount Server comes with 8x hot-swap 2.5" SATA/SAS drive bays with Broadcom 3108 12G SAS controller, six 40mm counter rotating fans, and is equipped with 1000W redundant Titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

1U Supermicro Rack Mount Server With X12DPT-PT6 Motherboard

  • 2x Supermicro X12DPT-PT6 Motherboard
  • 4x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 64GB(8x 8GB) DDR4 ECC Registered Memory
  • 8x 2.5" Hot-swap SATA Drive Bays
  • Broadcom 3108 12G SAS Controller
  • 2x 1.0TB SATA 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • 2x 10GBase-T LAN
  • Built-in Video
  • 1000W Redundant Power Supply, Titanium Level Certified
