Supermicro Twin SuperServer SYS-120TP-DTTR

Features:


High Performance Computing
Hyper-Converged Infrastructure
Big Data / Big Science

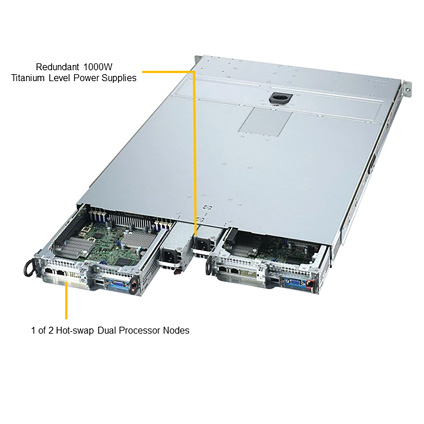

Two Hot-pluggable Systems (Nodes) in a 1U Form Factor. Each Node Supports the Following:
  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® C621A Chipset
  • 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM

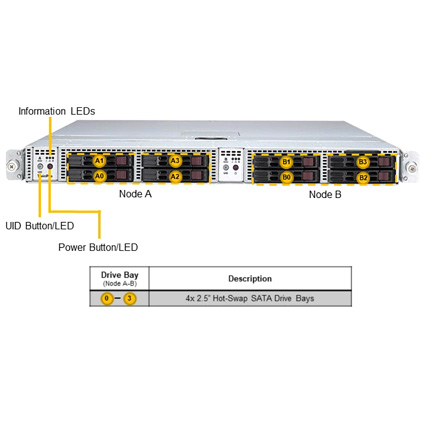

  • 4x 2.5" Hot-swap SATA Drive Bays

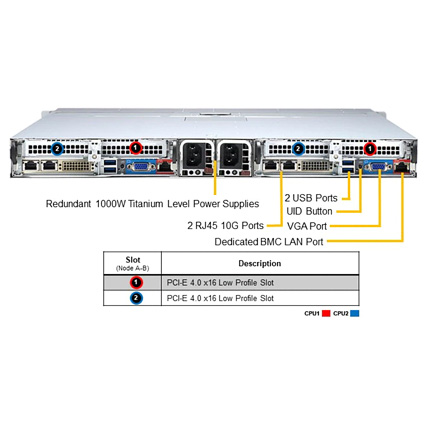

  • 2x PCI-E 4.0 x16 (LP), 1x PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
  • Intel® X710 Dual port 10GBase-T LAN onboard
  • 6x Counter-rotating 40m PWM Fans with Optimal Fan Speed Control (Per System)
  • ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM Ports
    SATA (6Gbps); 4 Slots Per Node; RAID 0, 1, 5, 10 Support.
  • 1000W Redundant Titanium Level Power Supply
  • 28.25" Depth Rack Mount Chassis

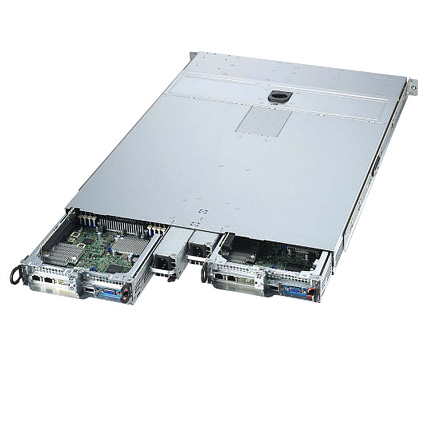

The Supermicro Twin SuperServer 120TP-DTTR is a 28.25" depth 1U 2-nodes high performance rackmount server. Each nodes supports dual 3rd Gen. Intel Xeon Scalable Processor, up to 4.0TB DDR4 ECC RDIMM/LRDIMM memory. The 120TP-DTTR 1U Racknount Server comes with 8x hot-swap 2.5" SATA drive bays, six 40mm counter rotating fans, and is equipped with 1000W redundant Titanium level power supply.
