Supermicro A+ Server 2014TP-HTR


Compute Intensive Application
HPC, Data Center, Enterprise Server
Hyperscale, Hyperconverged

2U Rackmount Server
4x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 8x DIMM Slots

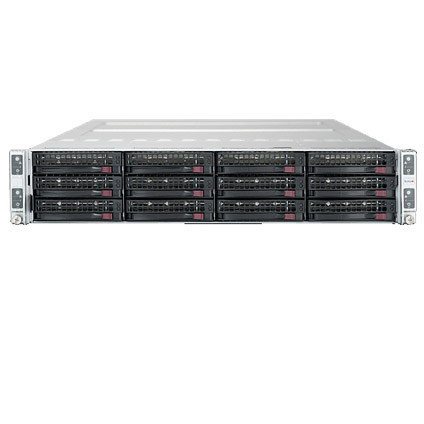

  • 3x 3.5" Hot-swap SATA3 Drive Bays
  • 4x SATA/PCI-E 4.0 x4 M.2 Slots; M.2 Form Factor: 2280, 22110, 2260, 2242
  • 2x PCI-E 4.0 x16 (LP) Slots

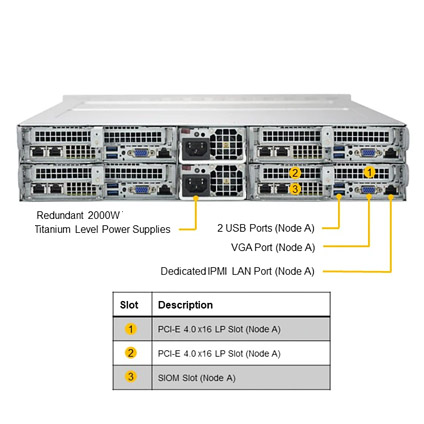

  • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
    Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • 4x 80mm Heavy Duty Fans
  • 2000W Redundant Power Supplies; Titanium Level (96%)
  • 30.5" Depth Rackmount Chassis

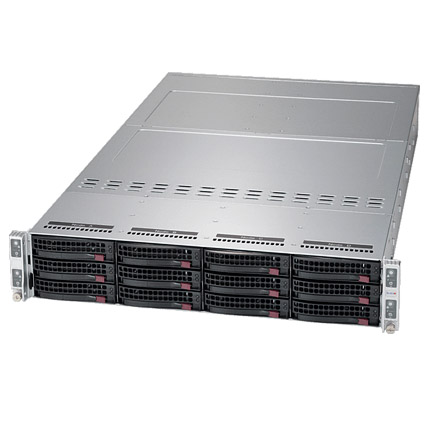

The Supermicro A+ Server 2014TP-HTR is a 2U 4x nodes high performance rackmount server. Each nodes supports single AMD EPYC™ 7002/7003 series processor, up to 2TB DDR4 ECC Registered Memory, each nodes comes with 3x hot-swap 3.5" SATA3 drive bays and 4x SATA/PCI-E 4.0 x4 M.2 slots. The 2014TP-HTR TwinPro system is equipped with 4x 80mm heavy duty fans, and 2000W redundant titanium level power supply. The Supermicro Server 2014TP-HTR is a multi-node server design optimized for hyper-converged infrastructure, flash storage with reduced data center TCO.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With H12SST-PS Motherboard

  • 4x Supermicro H12SST-PS Motherboard
  • 4x AMD EPYC™ 7003
  • 64GB(8x 8GB) DDR4 ECC Reg Memory
  • 4x 1.0TB SATA 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • 12x 3.5" Hot-swap SATA3 Trays
  • 16x PCI-E 4.0 x4 M.2 Slots
  • 4x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 2000W Redundant 80 Plus Titanium Power Supply

Barebone Only:
