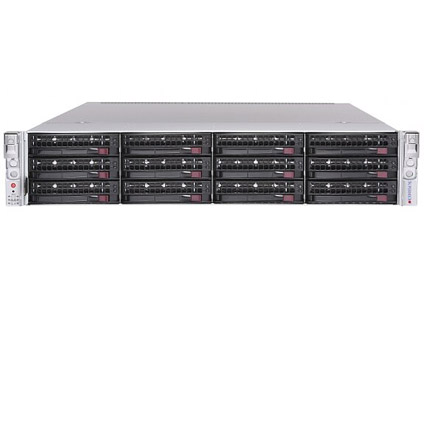

Supermicro A+ Server 2024US-TRT w/ 12x 3.5" Drive Bays

Features:


Virtualization
Cloud Computing
High End Enterprise Server
Hyperconverge Storage
Flexible Networking Options
  • 2U Rackmount Server
  • Dual AMD EPYC™ 7003/7002 Series Processors (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  • 8TB Registered ECC DDR4 3200MHz SDRAM in 32x DIMMs
  • 12x 3.5" Hot-swap SATA3 Drive Bays, or 8x SATA3 + 4x NVMe, or 12x SAS3 via Optional SAS Kit
  • 2x PCI-E 4.0 x16 (FH, 10.5" L) Slots, 1x PCI-E 4.0 x16 (FH, 9.5" L) Slot, 1x PCI-E 4.0 x16 (LP) Slot, 1x PCI-E 4.0 x8 (FH, 9.5" L, in x16) Slot, 1x PCI-E 4.0 x8 (internal proprietary LP in x16) slot
  • Dual 10GBase-T LAN ports via Intel® X710-AT2
  • Integrated IPMI 2.0 + KVM with dedicated LAN
    Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • 4x Heavy Duty PWM Fans with Optimal Fan Speed Control
  • 1600W Redundant Titanium Level Power Supplies /li>
  • 28.46" Depth Rack Mount Chassis

The Supermicro A+ Server 2024US-TRT 2U Rackmount server features dual AMD EPYC™ 7002/7003 series processor, supports up to 8.0TB DDR4 ECC Registered Memory, dual 10GBase-T LAN ports on-board. The Supermicro Server 2024US-TRT comes with twelve 3.5" hot-swap drive bays, four heavy-duty fans, and is equipped with 1600W redundant titanium Level power supply.


Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

Supermicro 2U Rack Mount Server With H12DSU-iN Motherboard


  • Supermicro H12DSU-iN Motherboard
  • 2x AMD EPYC™ 7003
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 12x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 1600W Redundant Power Supply, Titanium Level Power Supplies

Barebone Only:

$3,055.00

Configured:

$6,295.00

Customize
