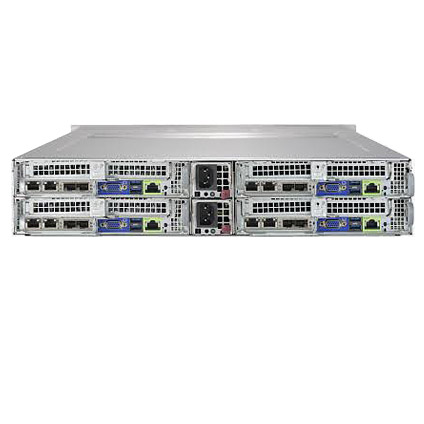

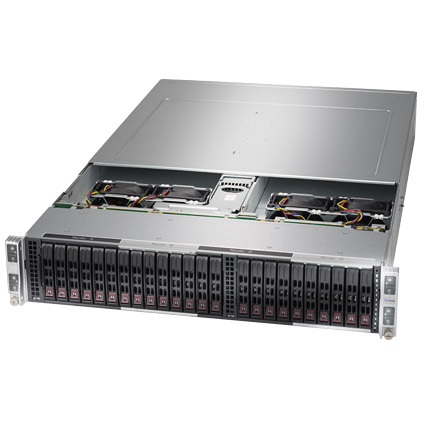

Supermicro Server 2029BT-HTR 2U BigTwin Racknount Server w/ 24x 2.5" Hot-swap SATA3 Drive Bays

Features:


Compute Intensive Application
HPC, Data Center, Enterprise Server
Hyperscale, Hyperconverged


2U Rackmount Server
4x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

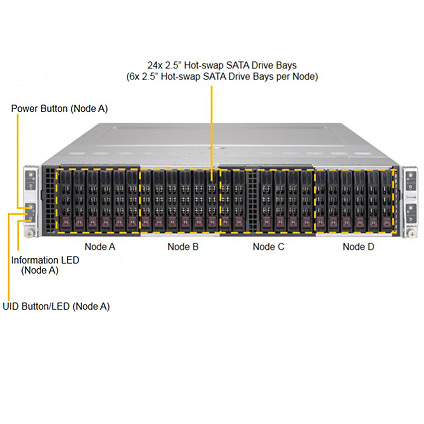

  • 6x 2.5" Hot-swap SATA3 Drive Bays
  • 2x PCI-E 3.0 x16 (LP) Slots; 1x SIOM Card Support (Flexible Networking)
    Note: Must Bundle with Network Card
  • IPMI 2.0 + KVM with dedicated LAN
  • Video via Aspeed AST2500 BMC
  • 4x 80mm Heavy Duty Fans with Air Shroud
  • 1200W Redundant Power Supplies; Titanium Level (96%)
  • 28.75" Depth Rackmount Chassis

The Supermicro SuperServer 2029BT-HTR is an 28.75" depth 2U 4x nodes high performance rackmount server. Each nodes supports dual Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM. The 2029BT-HTR 2U BigTwin Racknount Server comes with 24x hot-swap 2.5" SATA3 drive bays, is equipped with four 80mm heavy duty fans, and 1200W redundant Titanium level power supply.
