Supermicro SuperStorage Server 2029P-ACR24H w/ 24x 2.5" SAS3/SATA3 Bays 2x 10GbE

Features:


Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
iSCSI SAN
  • 2U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C624 Chipset
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots

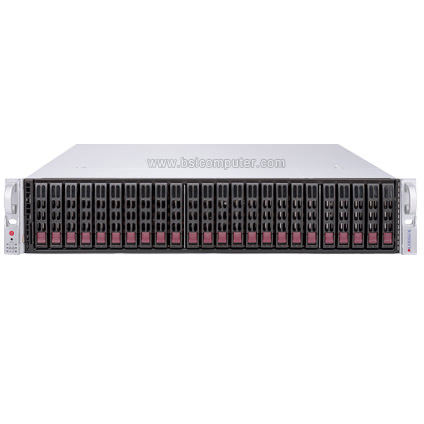

  • 24x Hot-swap 2.5" SAS3/SATA3 Direct Attached Drive Bays
    3x Broadcom 3108 SAS3 AOC (HW RAID), RAID 0, 1, 5, 6, 10, 50, 60
  • 2x M.2 Slots
  • 3x PCI-E 3.0 x16, 4x PCI-E 3.0 x8 Slots
  • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
    Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 3x 80mm Heavy Duty PWM Fans
  • 1000W Redundant Power Supply, Titanium Level (96%)
  • 24.8" Depth Rack Mount Chassis

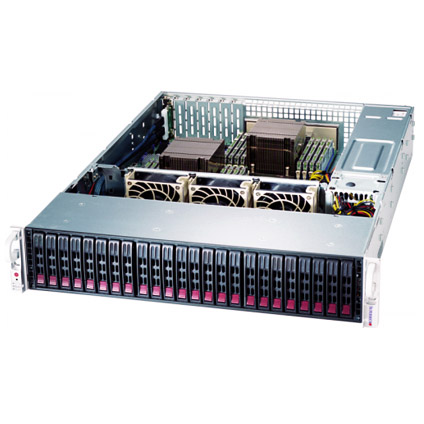

The Supermicro Server 2029P-ACR24H is a 24.8" depth 2U Rackmount server that features dual Intel® Xeon® Scalable Processor with Intel® C624 Chipset, supports up to 2.0TB DDR4 ECC 3DS LRDIMM Memory, built-in dual port 10GBase-T LAN & IPMI LAN. The Supermicro SuperStorage Server 2029P-ACR24H comes with 24x 2.5" hot-swap SAS3/SATA3 drive bays, three 80mm hot-swap PWM fans, and is equipped with 1000W redundant Titanium level power supply.
