Supermicro SuperStorage Server 2029P-E1CR48L 2U Rackmount Server

Features:


Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
iSCSI SAN
  • 2U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM Slots
  • 48x Hot-swap 3.5" SAS3/SATA3 Drive Bays, LSI 3008 SAS3 IT Mode Controller
  • 2x Rear Hot-swap 2.5" SATA Drive Bays
  • 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 Slots
    1x SIOM Card Support (Flexible Networking) Note: Must Bundle with Network Card
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x Hot-swap 80mm High Performance PWM Fans
  • 1000W Redundant Power Supply, Titanium Level (96%)
  • 30" Depth Rack Mount Chassis

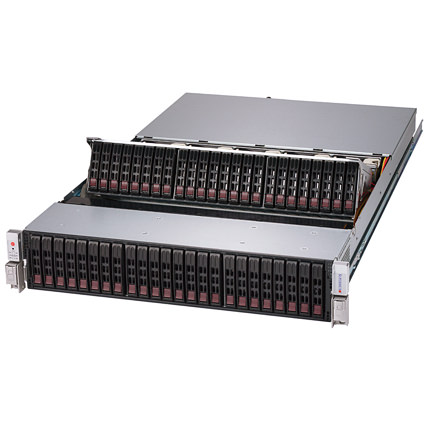

The Supermicro SuperStorage 2029P-E1CR48L is a 30" depth 2U Rackmount server that features 48x 2.5" Hot-swap SAS3/SATA3 drive bays for high-capacity storage. Supports dual Intel® Xeon® Scalable Processor, up to 3.0TB DDR4 ECC 3DS LRDIMM Memory. The Supermicro Server 2029P-E1CR48L comes with five 80mm PWM fans, is equipped with 1000W redundant titanium level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DSC+ Motherboard
2U Supermicro Rack Mount Server With X11DSC+ Motherboard


  • Supermicro X11DSC+ Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • Intel® C621 Chipset
  • 48x 2.5" Hot-swap SAS3/SATA3 Drive Bays, 2x Rear Hot-swap 2.5" Drive Bays
  • 24x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Broadcom 3108 SAS3 Hardware RAID Controller
  • 1 x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2 (2x RJ45)
  • Built-in Video
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:

 $4,489.00

Configured:

$10,155.00

Customize
