Supermicro 2029P-TXRT 2U Rackmount Server


Industrial Server Solutions
Networking Telephony
Surveillance DCR
GPU Pass-through VM server
Flash Array Server
Head-node Controller
  • 2U Rackmount Server

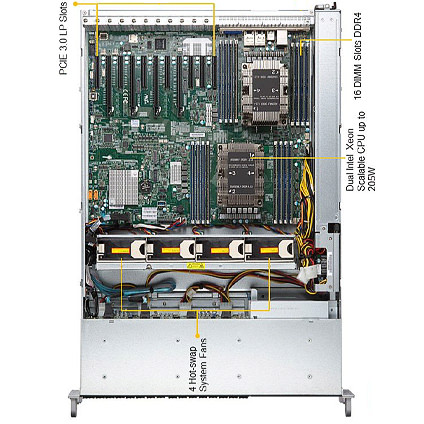

  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots

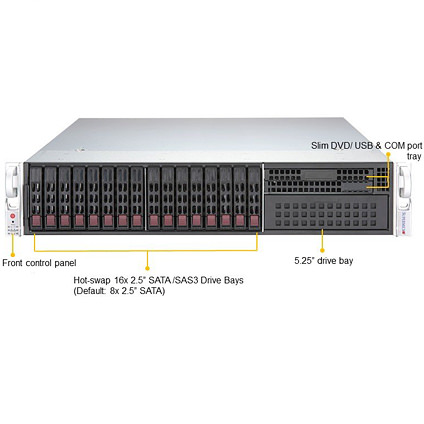

  • 16x 2.5" Hot-swap SAS/SATA Drive Bays
  • 1x Slim DVD-ROM Drive Bay
  • 1x PCI-E 3.0 x4 M.2 Slot from PCH
  • 2x PCI-E 3.0 x16 Slots (HSSI), 2x PCI-E 3.0 x16 Slots (or 4 PCI-E 3.0 x8)
    4x PCI-E 3.0 x8 Slots, 1x PCI-E 3.0 x4 (in x8 Slot)
  • 2x 10GBase-T LAN Ports with Intel X550-AT2, Integrated IPMI 2.0 with KVM and Dedicated LAN
  • 4x Middle Fans
  • 800W Redundant Power Supply, Titanium Level (96% Efficiency)
  • 25.6" Depth Rack Mount Chassis

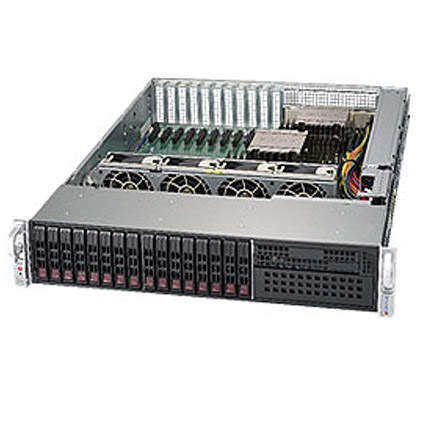

The Supermicro Server 2029P-TXRT is a 25.6" depth 2U Rackmount server that features dual Intel® Xeon® Scalable Processor, supports up to 2.0TB DDR4 ECC 3DS LRDIMM Memory, dual port 10GBase-T ports. The Supermicro SuperServer 2029P-TXRT comes with sixteen 2.5" hot-swap drive SAS/SATA drive bays, four middle fans, and is equipped with 800W redundant Titanium level power supply.
