Supermicro 2029TP-HC0R 2U Rackmount Server


Compute Intensive Application
HPC, Data Center, Enterprise Server
Financial Analysis
Mission-critical applications

2U Rackmount Server

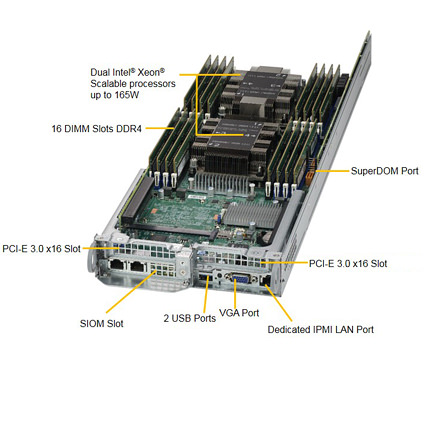

4x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 2TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 16x DIMM slots
  • 6x 2.5" Hot-swap SAS/SATA Drive Bays
  • Broadcom 3008 SAS3 Controller; Supports RAID 0, 1, 10
    Mini-mSATA (Half Size) Support on 3008 Backplane
  • 2x PCI-E 3.0 x16 Slots
  • Flexible Networking Support via SIOM; Dedicated IPMI 2.0 LAN
  • 4x 80mm Heavy Duty Fans
  • 1200W Redundant Power Supplies; Titanium Level (96%)
  • 28.5" Depth Rackmount Chassis

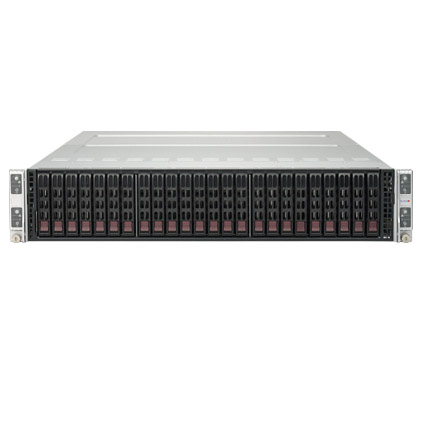

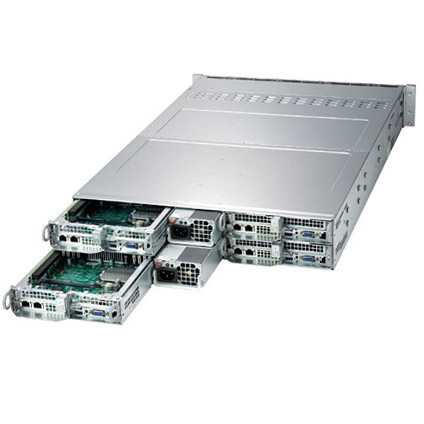

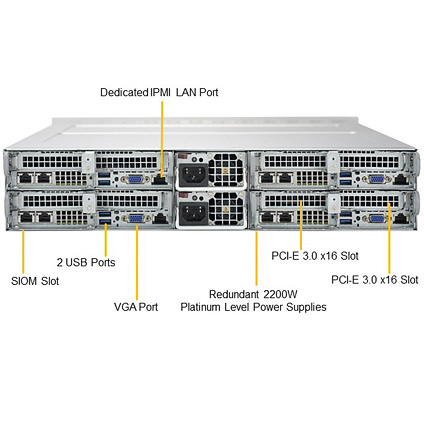

The Supermicro SuperServer 2029TP-HC0R is a 28.5" depth 2U 4x nodes high performance rackmount server. Each nodes supports dual Intel® Xeon® Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM memory. The 2029TP-HC0R 2U Racknount Server comes with 24x hot-swap 2.5" SAS/SATA drive bays with Broadcom 3008 SAS3 12Gb/s controller, four 80mm heavy duty cooling fans, and is equipped with 1200W redundant Titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DPT-PS Motherboard

  • 4x Supermicro X11DPT-PS Motherboard
  • 8x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • Intel® C621 Chipset
  • 128GB(16x 8GB) DDR4 ECC Reg Memory
  • 24x 2.5" Hot-swap SAS/SATA Trays
  • Broadcom 3008 SAS3 Controller; Supports RAID 0, 1, 10
    Mini-mSATA (Half Size) Support on 3008 Backplane
  • 4x 1.0TB SATA 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • 4x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 1200W Redundant 80 Plus Titanium Power Supply

Barebone Only:
