Supermicro 2029TP-HTR 2U Rackmount Server


Compute Intensive Application
HPC, Data Center, Enterprise Server
Financial Analysis
Mission-critical applications

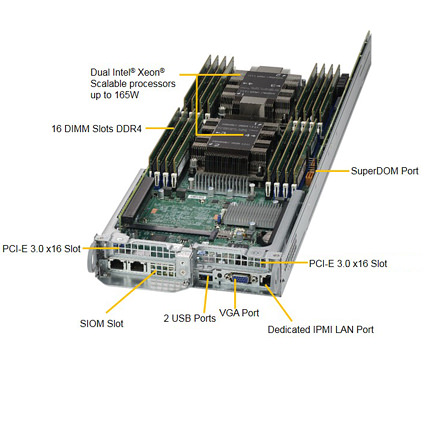

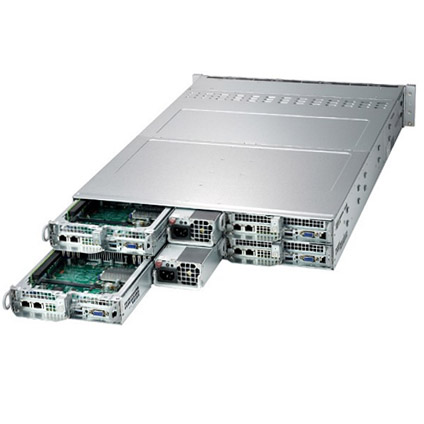

4x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual Socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 2TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 16x DIMM slots
  • 6x 2.5" Hot-swap SATA3 Drive Bays
  • 2x PCI-E 3.0 x16 Slots
  • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
  • 4x 80mm Heavy Duty Fans
  • 1200W Redundant Power Supplies; Titanium Level (96%)
  • 28.5" Depth Rackmount Chassis

The Supermicro SuperServer 2029TP-HTR is a 28.5" depth 2U 4x nodes high performance rackmount server. Each nodes supports dual Intel® Xeon® Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM memory. The 2029TP-HTR 2U Racknount Server comes with 24x hot-swap 2.5" SATA3 drive bays, four 80mm heavy duty fans, and is equipped with 1200W redundant Titanium level power supply.
