Supermicro Ultra SuperServer 2029U-E1CR4T w/ 24x 2.5" SAS3 and 4x 10GBase-T LAN

Features:

  • Flexible Networking Options
  • 2U Rackmount Server

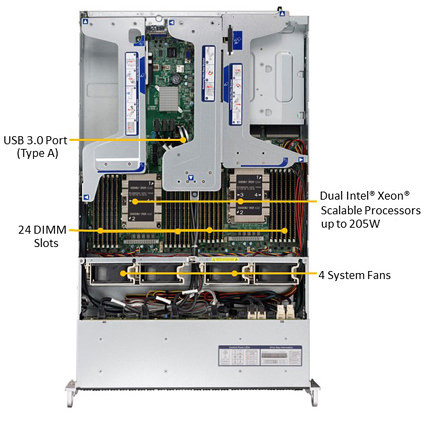

  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

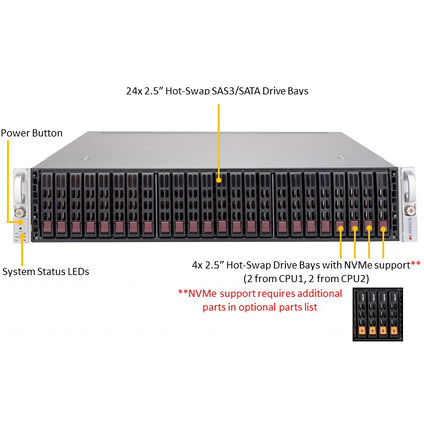

  • 24x 2.5" Hot-swap Drive Bays: 24 SAS3 via Optional Add-on Card (4x Hybrid Ports - Optional 4x NVMe)
  • 1x PCI-E 3.0 x16 Full-Height 10.5" Length Slots

  • 5x PCI-E 3.0 x8 Full-Height 10.5" Length Slots
    1x PCI-E 3.0 x8 Low Profiles Slot
    1x PCI-E 3.0 x8 (Internal LP)
  • 4x 10GBase-T LAN ports via Intel X710
  • 4x Heavy Duty 80mm Fans
  • 800W Redundant Titanium Level (96%) Power Supplies
  • 27.76" Depth Rack Mount Chassis

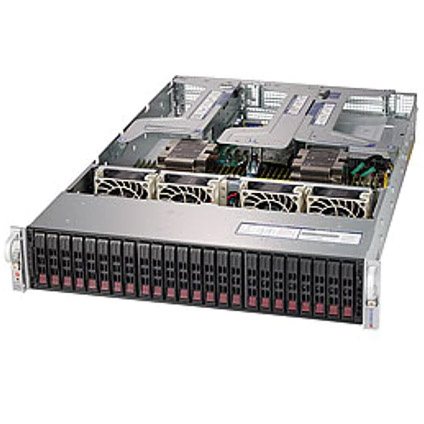

The Supermicro Ultra SuperServer 2029U-E1CR4T is an 27.76" depth 2U Rackmount server that features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM, built-in four 10GBase-T LAN ports via Intel X710 add-on card. The 2029U-E1CR4T 2U Rackmount server comes with twenty four 2.5" hot-swap SAS3 drive bays, is equipped with four 80mm heavy duty fans, and 800W redundant Titanium level power supply.
