Supermicro Ultra SuperServer 2029U-TN24R4T w/ 24x NVMe Drive Bays 2x M.2 Slots 4x GbE LAN


  • 2U Rackmount Server
  • Flexible Networking Options
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

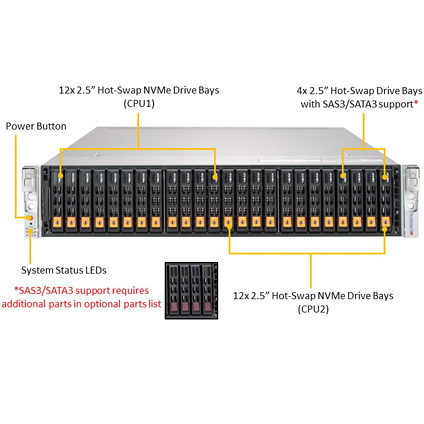

  • 24x 2.5" Hot-swap Drive Bays: 24x NVMe (4x Hybrid Ports - SAS3 via Optional Add-on Card)
    2x Rear 2.5" Hot-swap Drive Bays
  • 2x Internal M.2 Slots (1 SATA3, 1 NVMe)
  • 2x PCI-E 3.0 x16 Full-Height 10.5" Length Slots

  • 1x PCI-E 3.0 x8 Low Profiles Slot
  • 4x 10GBase-T Ethernet LAN Ports
  • 4x Heavy Duty 80mm Fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
  • 27.76" Depth Rack Mount Chassis

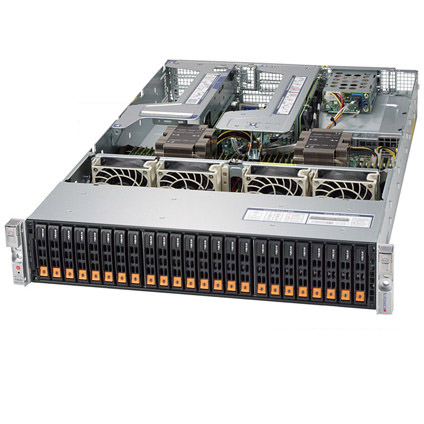

The Supermicro Ultra SuperServer 2029U-TN24R4T 27.76" depth 2U Rackmount server features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM, built-in four 10GBase-T Ethernet ports. The 2029U-TN24R4T 2U Rackmount server comes with twenty four 2.5" hot-swap NVMe drive bays, is equipped with four 80mm heavy duty fans, and 1000W redundant titanium level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X11DPU Motherboard

  • Supermicro X11DPU Motherboard
  • 2x Intel® Xeon® Bronze 3206R Processor 8-Core 1.90 GHz 11MB Cache
  • Intel® C621 Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 24x 2.5" Hot-swap NVMe Drive Bays
  • 6x 960GB 2.5" 7450 PRO NVMe PCIe 4.0 Solid State Drive
  • Built-in Video
  • Built-in 4x 10GBase-T ports via Intel® X550 Ethernet Controller
  • 1000W Redundant 80 Plus Titanium Power Supply
