Supermicro Ultra SuperServer 2029U-TR4 w/ 24x 2.5" SATA and 4x GbE LAN
Features:
- 2U Rackmount Server
- Flexible Networking Options
- Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
- Intel® C621 Express Chipset
- Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

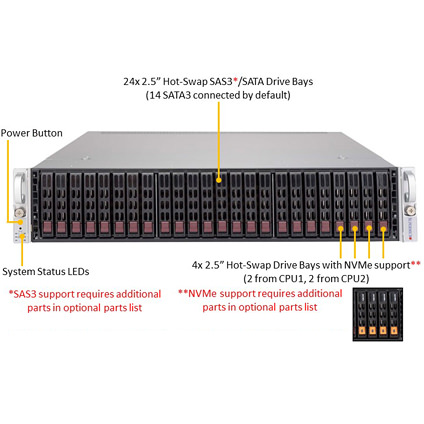

- 24x 2.5" Hot-swap SATA3 Drive Bays: 14 SATA3 (Optional 20 SAS3 + 4 NVMe/SAS3)
- 1x PCI-E 3.0 x16 Full-Height 10.5" Length Slots
5x PCI-E 3.0 x8 Full-Height 10.5" Length Slots
1x PCI-E 3.0 x8 Low Profiles Slot
1x PCI-E 3.0 x8 (Internal LP) - 4x Gigabit Ethernet LAN Ports
- 4x Heavy Duty 80mm Fans
- 800W Redundant Titanium Level (96%) Power Supplies
- 27.76" Depth Rack Mount Chassis

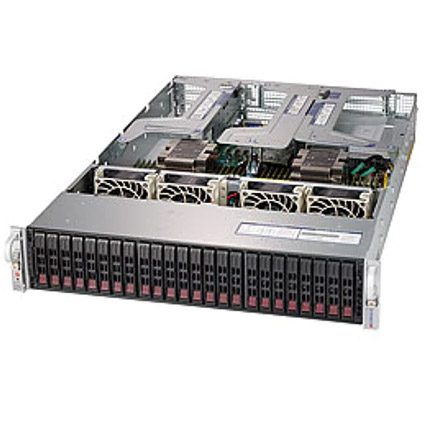

The Supermicro Ultra SuperServer 2029U-TR4 is an 27.76" depth 2U Rackmount server that features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM, built-in four Gigabit Ethernet ports. The 2029U-TR4 2U Rackmount server comes with twenty four 2.5" hot-swap drive bays, is equipped with four 80mm heavy duty fans, and 800W redundant Titanium level power supply.
Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.
Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.
Base Configurations
2U Supermicro Rack Mount Server With X11DPU Motherboard
- Supermicro X11DPU Motherboard
- 2x Intel® Xeon® Bronze 3206R Processor 8-Core 1.90 GHz 11MB Cache
- Intel® C621 Chipset
- 32GB(4x 8GB) DDR4 ECC Registered Memory
- 24x 2.5" Hot-swap Drive Bays
- 1x 240GB 2.5" PM883 SATA 6Gb/s Solid State Drive (1.3 x DWPD)
- Built-in Video
- Built-in 4x Gigabit Ethernet Ports via AOC-2UR68-i4G Add-on Card (Intel® i350)
- 800W Redundant 80 Plus Titanium Power Supply
Configured: |
$3,775.00 |
