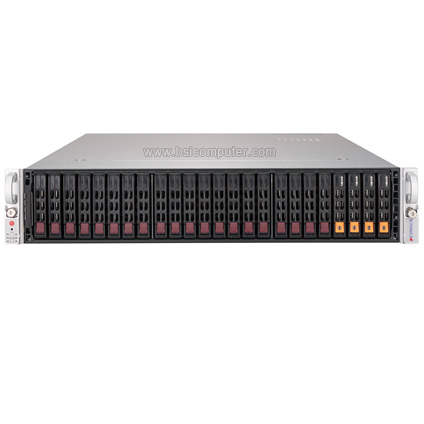

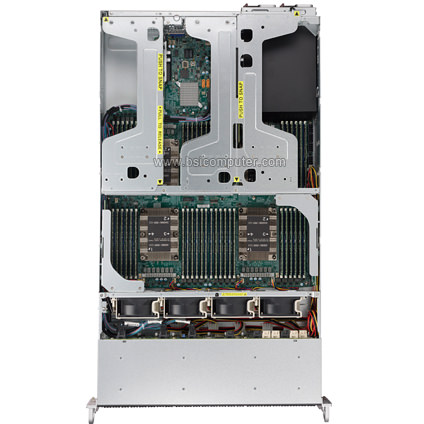

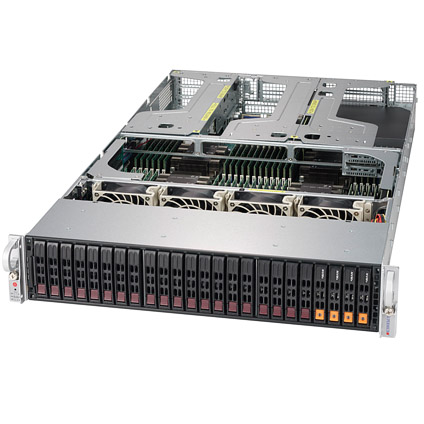

Supermicro Ultra SuperServer 2049U-TR4 w/ 24x 2.5" SAS3/SATA3 and 4x GbE LAN


48x DDR4 DIMM Slots, up to 6TB
Up to 11x PCI-E 3.0 Slots
4x Hot-Swap NVMe Bays Support via Optional NVMe AOC
Flexible Connectivity Options

  • 2U Rackmount Server
  • 4x socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 6TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 48x DIMM slots
  • 24x 2.5" Hot-swap SAS3/SATA3 Drive Bays Supported via Optional Add-on RAID Controller Card;
    4 Hybrid Ports with NVMe Support via Extra AOC
  • 6x PCI-E 3.0 x16 Slots
  • 5x PCI-E 3.0 x8 Slots
  • 4x GbE LAN Ports via AOC-2UR66-i4G, 1x Dedicated IPMI LAN Port
  • 4x Heavy Duty 80mm Fans
  • 1000W Redundant Titanium Level (96%) Power Supplies
  • 30.7" Depth Rack Mount Chassis

The Supermicro Ultra SuperServer 2049U-TR4 is an 30.7" depth 2U Rackmount server that features quad latest Intel® Xeon® Scalable Processor. 48x DIMM slots supports up to 6TB Memory, built-in four Gigabit Ethernet ports via AOC-2UR66-i4G add-on card. The 2049U-TR4 2U Rackmount server comes with twenty four 2.5" hot-swap drive bays, is equipped with four 80mm heavy duty fans, and 1000W redundant Titanium level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11QPH+ Motherboard

  • Supermicro X11QPH+ Motherboard
  • 4x Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • Intel® C621 Chipset
  • 64GB(8x 8GB) DDR4 ECC Registered Memory
  • 24x 2.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 4x Gigabit Ethernet Ports via AOC-2UR66-i4G add-on card
  • 1000W Redundant 80 Plus Titanium Power Supply

Barebone Only:
