Supermicro A+ Server 2124BT-HTR

Features:


Compute Intensive Application
HPC, Data Center, Enterprise Server
Hyperscale, Hyperconverged


2U Rackmount Server

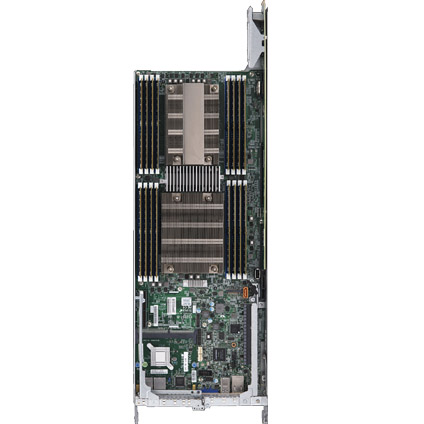

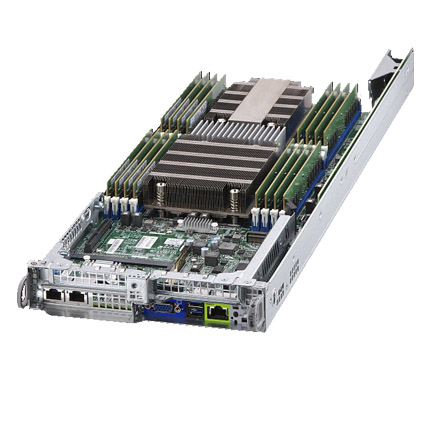

4x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual AMD EPYC™ 7002/7003 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
  • Up to 4TB Registered ECC DDR4 3200MHz SDRAM; 16x DIMM Slots
  • 6x 2.5" Hot-swap SATA3 Drive Bays
  • 2x PCI-E 4.0 x16 (LP) Slots; 1x SIOM Card Support (Flexible Networking)
    Note: Must Bundle with Network Card
  • 1x SATA/PCI-E 3.0 x4 M.2 Slot
  • Integrated IPMI 2.0 + KVM with dedicated LAN
    Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • Video via Aspeed AST2500 BMC
  • 4x 80mm Heavy Duty Fans
  • 2200W Redundant Power Supplies; Titanium Level (96%)
  • 28.75" Depth Rackmount Chassis

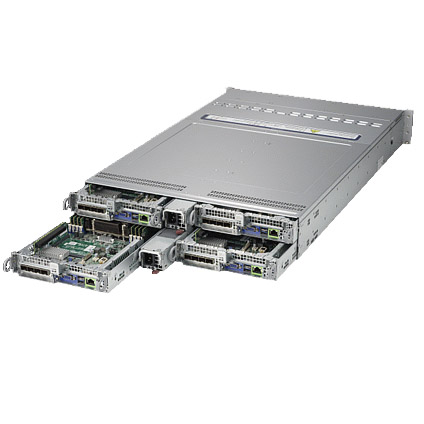

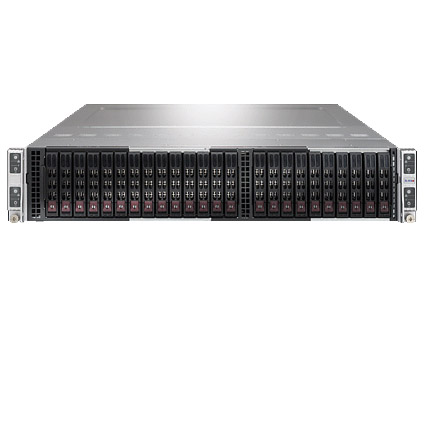

The Supermicro A+ Server 2124BT-HTR is an 2U 4x nodes high performance rackmount server. Each nodes supports dual AMD EPYC™ 7002/7003 series processor, up to 4TB DDR4 ECC Registered Memory. The 2124BT-HTR BigTwin system comes with 24x hot-swap 2.5" SATA3 drive bays, is equipped with 4x heavy duty 80mm PWM fans, and 2200W redundant titanium level power supply. The Supermicro Server 2124BT-HTR BigTwin system is a multi-node server design optimized for hyper-converged infrastructure, flash storage with reduced data center TCO.


Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With H12DST-B Motherboard


  • 4x Supermicro H12DST-B Motherboard
  • 8x AMD EPYC™ 7003
  • 128GB(16x 8GB) DDR4 ECC Reg Memory
  • 24x 2.5" Hot-swap SATA3 Trays
  • 4x 1.0TB SATA 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • 4x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 2200W Redundant 80 Plus Titanium Power Supply

Barebone Only:

$5,799.00

Configured:

$18,729.00

Customize
