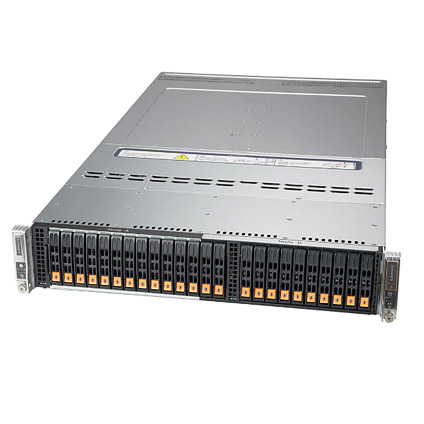

Supermicro BigTwin SuperServer 220BT-DNC8R


All-Flash Hyperconverged Infrastructure
All-Flash Storage Area Network
All-Flash Object Storage

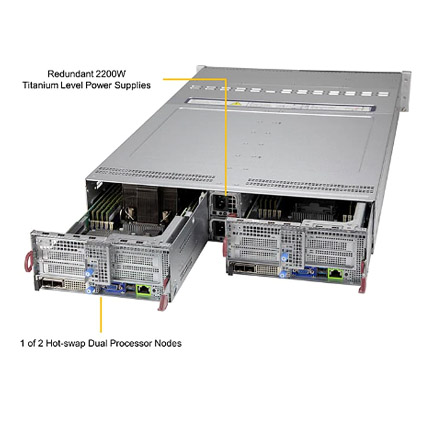

Two Hot-pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:

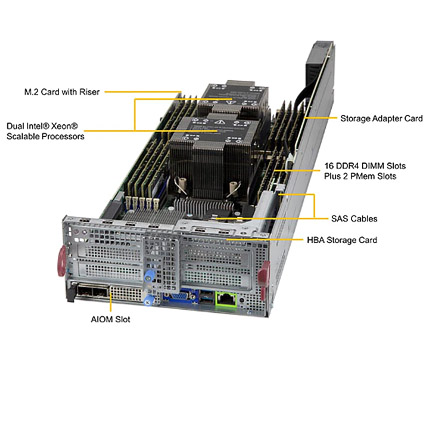

  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
    Support CPU TDP 270W
  • Intel® C621A Chipset
  • 20x DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)

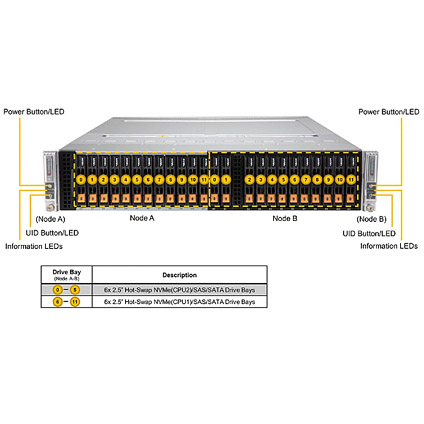

  • 12x 2.5" Hot-swap NVME/SAS/SATA Drive Bays
  • 1x PCI-E 4.0 x16 (LP) Slot, 1x PCI-E 4.0 x8 (LP) Slot;
    Tool-less support
    Internal PCI-E 3.0 x8 for 2 M.2 NVMe/SATA Support Onboard
    Optional NVMe Boot Controller via AOC-SMG3-2M2-B
  • Network Connectivity via AIOM (OCP 3.0 Compliant)
  • 2x 80mm 16.5K RPM Cooling Fans Per Node, Liquid Cooling Support
  • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • 28.75" Depth Rack Mount Chassis

The Supermicro BigTwin SuperServer 220BT-DNC8R is a 28.75" depth 2U 2-nodes high performance rackmount server. Each nodes supports dual 3rd Gen. Intel Xeon Scalable Processor, 20 DIMM slots supports up to 6.0TB memory. The 220BT-DNC8R 2U Racknount Server comes with 24x hot-swap 2.5" NVME/SAS/SATA drive bays, four 80mm 16.5K RPM heavy duty fans, and is equipped with 2200W redundant titanium level power supply.
