Supermicro BigTwin SuperServer 220BT-HNTR


All-Flash NVMe Hyperconverged Infrastructure
Container-as-a-Service; Application Accelerator
High-Performance File System
Diskless HPC Clusters

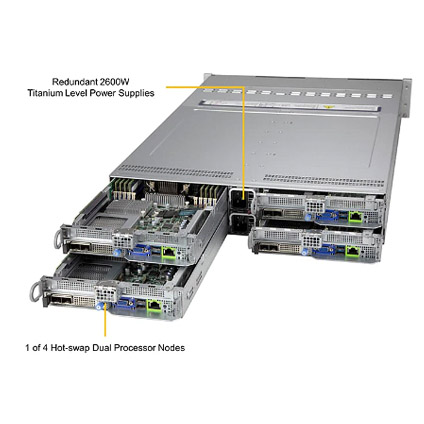

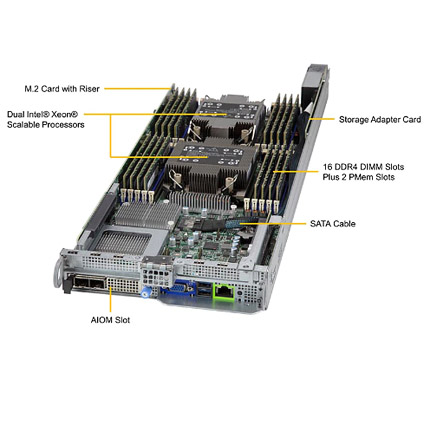

Four Hot-pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
    Support CPU TDP 205W
  • Intel® C621A Chipset
  • 20x DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)

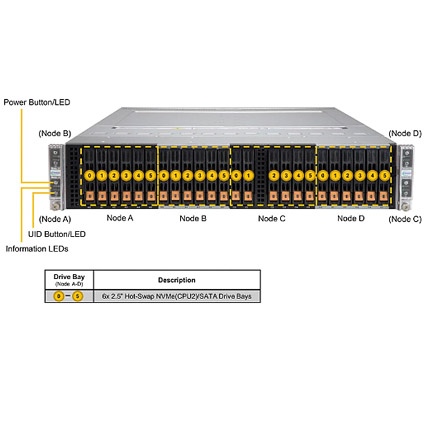

  • 6x Hot-swap 2.5" Drive Bays; 6x PCI-E 4.0 NVMe/SATA 2.5" Drives
  • 2x PCI-E 4.0 x16 (LP) Slots;
    Tool-less support
    Internal PCI-E 3.0 x8 for 2 M.2 NVMe/SATA Support Onboard
    Optional NVMe Boot Controller via AOC-SMG3-2M2-B
  • Network Connectivity via AIOM (OCP 3.0 Compliant)
  • 4 Cooling Fans Per 2U Enclosure, 16.5K RPM; Shared Cooling Design, Liquid Cooling Support

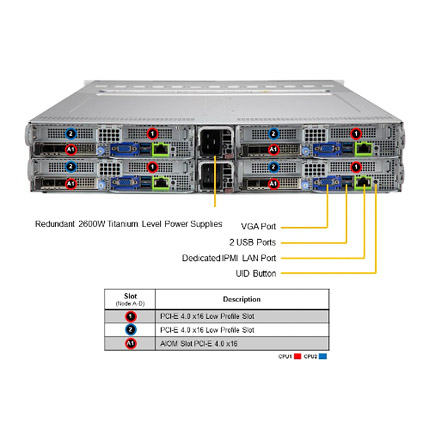

  • 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • 28.75" Depth Rack Mount Chassis

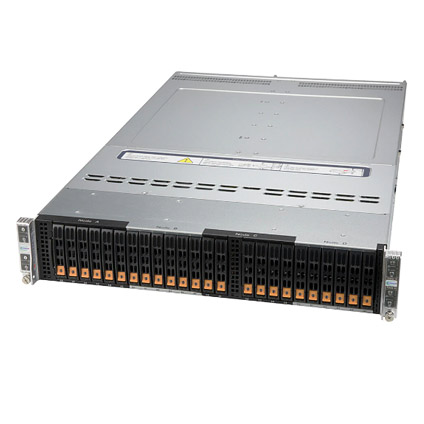

The Supermicro BigTwin SuperServer 220BT-HNTR is a 28.75" depth 2U 4-nodes high performance rackmount server. Each nodes supports dual 3rd Gen. Intel Xeon Scalable Processor, 20 DIMM slots supports up to 6.0TB memory. The 220BT-HNTR 2U Racknount Server comes with 24x hot-swap 2.5" NVME/SATA drive bays, four 80mm 16.5K RPM heavy duty fans, and is equipped with 2600W redundant titanium level power supply.
