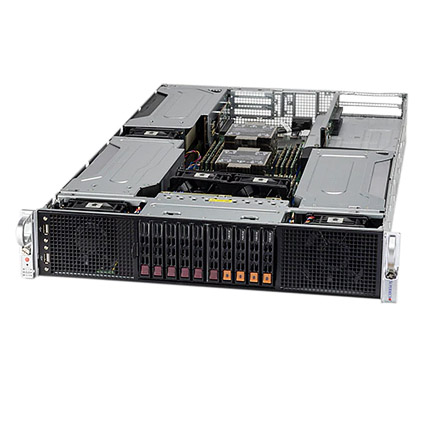

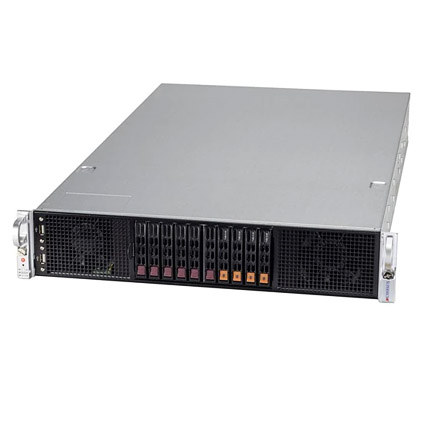

Supermicro GPU SuperServer 220GP-TNR Dual 3rd Gen Intel® Xeon® Processor System with 6 PCIe GPUs


Scientific Virtualization
High Performance Computing
AI/Deep Learning Training
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16 DIMMs; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  • 10x 2.5" Hot-swap NVMe/SATA/SAS Drive Bays (4x 2.5" NVMe Dedicated)
  • 2x M.2 NVMe for Boot Drive

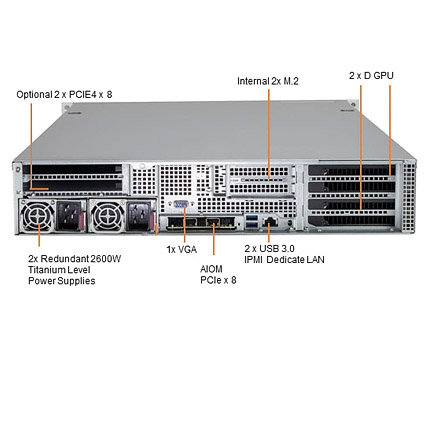

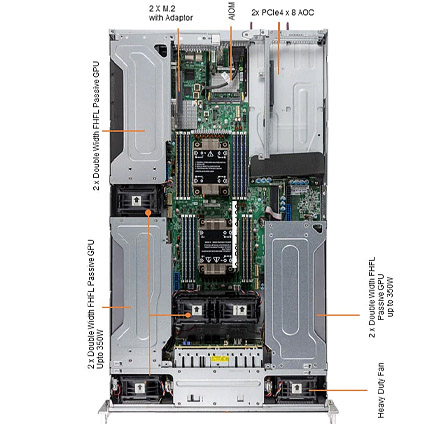

  • 6x PCI-E 4.0 x16 slots, supports up to 6x Double-wide GPUs
    2x PCI-E 4.0 x8 LP slots
  • Flexible networking options
  • 5x Counter Rotating Fans with Optimal Fan Speed Control
  • 2x 2600W Redundant Titanium Level Power Supplies
  • 30.18" Depth Rack Mount Chassis

The Supermicro SuperServer 220GP-TNR 2U 30.18" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM. The Supermicro Server 220GP-TNR supports up to six double-wide GPUs. Two M.2 slots, ten 2.5" hot-swap NVMe/SATA/SAS drive bays, five counter rotating fans, and is equipped 2x 2600W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X12DPG-AR Motherboard

  • Supermicro X12DPG-AR Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 10x 2.5" Hot-swap Drive Bays
  • 1x 960GB Intel® SSD D3-S4510 Series 2.5" SATA 6.0Gb/s Solid State Drive
  • Built-in Video
  • 2x 2600W Redundant Power Supply, Titanium Level
