Supermicro Hyper SuperServer 220HE-FTNR w/ 6x 2.5" Hot-swap NVMe/SATA Drive Bays


5G Core and Edge
Telecom Micro Data Center
AI Inference and Machine Learning
Network Function Virtualization
Cloud Computing
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset

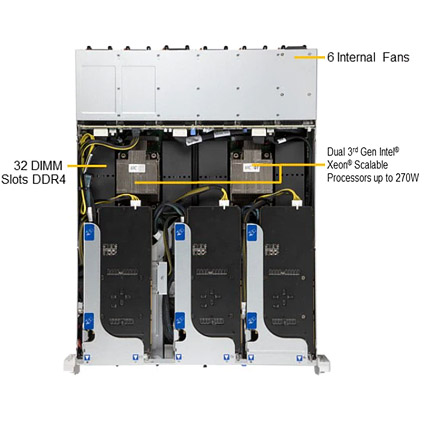

  • 32 DIMMs; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series

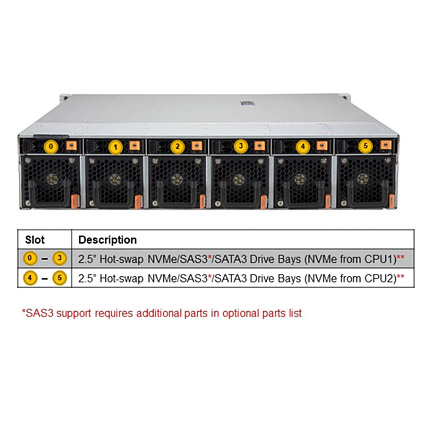

  • Up to 6x 2.5" Hot-swap drive bays with options to support NVMe/SATA drives
  • 4x PCI-E 4.0 x16 slots with GPU/Accelerator support
  • Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
  • 6x 60mm Heavy duty hot-swap fans with optimal fan speed control

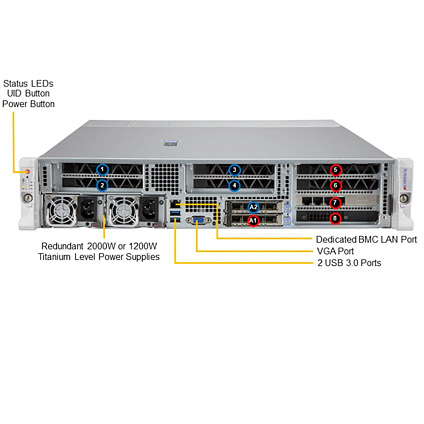

  • 2000W Redundant Titanium Level Power Supply
  • 22.6" Depth Rack Mount Chassis

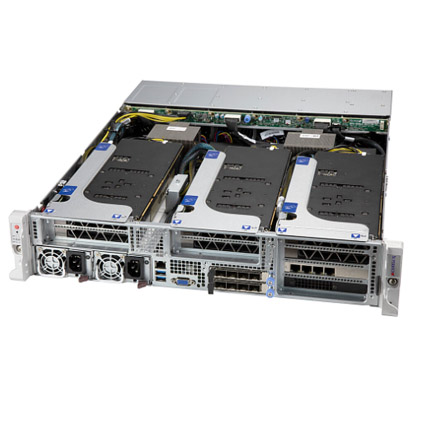

The Supermicro SuperServer 220HE-FTNR 2U 22.6" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, 32 DIMM slots supports up to 12.0TB Memory, 2x M.2 NVMe/SATA slots, 4x PCIe 4.0 x16 slots with GPU/Accelerator support. The Supermicro Server 220HE-FTNR comes with six 2.5" hot-swap NVMe/SATA drive bays, six heavy duty hot-swap fans, and is equipped 2000W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X12DHM-6 Motherboard

  • Supermicro X12DHM-6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 6x 2.5" Hot-swap NVMe/SATA Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • 2000W Redundant Titanium Level Power Supply
