Supermicro Hyper SuperServer 220HE-FTNRD w/ 6x 2.5" Hot-swap NVMe/SATA Drive Bays


5G Core and Edge
Telecom Micro Data Center
AI Inference and Machine Learning
Network Function Virtualization
Cloud Computing
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors, Intel® C621A Chipset
  • 32 DIMMs; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
    3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
    Intel® Optane™ Persistent Memory 200 series

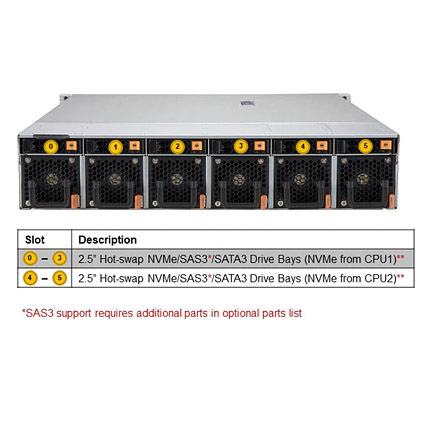

  • Up to 6x 2.5" Hot-swap drive bays with options to support NVMe/SATA drives
  • 4x PCI-E 4.0 x16 slots with GPU/Accelerator support
  • Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
  • 6x 60mm Heavy duty hot-swap fans with optimal fan speed control

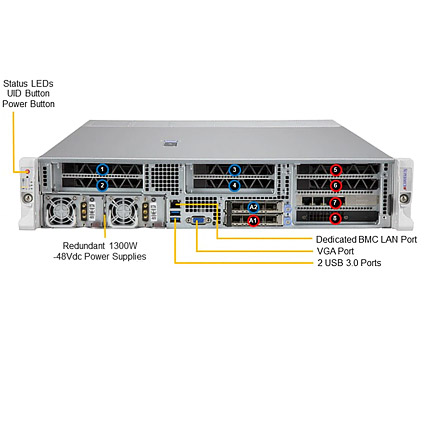

  • 1300W DC Power Supply
  • 22.6" Depth Rack Mount Chassis

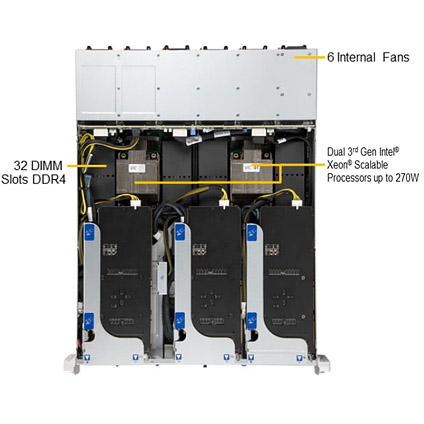

The Supermicro SuperServer 220HE-FTNRD 2U 22.6" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, 32 DIMM slots supports up to 12.0TB Memory, 2x M.2 NVMe/SATA slots, 4x PCIe 4.0 x16 slots with GPU/Accelerator support. The Supermicro Server 220HE-FTNRD comes with six 2.5" hot-swap NVMe/SATA drive bays, six heavy duty hot-swap fans, and is equipped 1300W DC power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X12DHM-6 Motherboard

  • Supermicro X12DHM-6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 6x 2.5" Hot-swap NVMe/SATA Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • 1300W DC Power Supply
