Supermicro Mainstream SuperServer 220P-C9RT w/ 16x 2.5" Drive Bays


High Performance Computing
Enterprise Server
Data Center Optimized
Database Processing and High Density Storage
Application-Optimized Solutions
  • 2U Rackmount Server

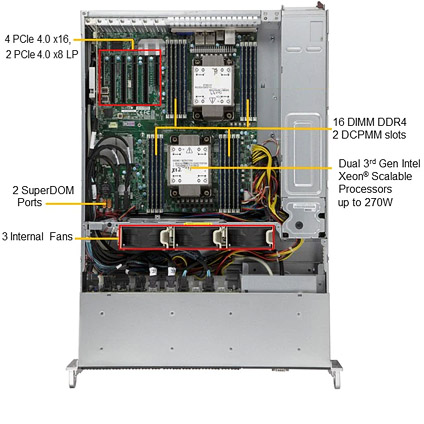

  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP. 3 UPI up to 11.2 GT/s
  • Intel® C621A Chipset
  • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz - Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)

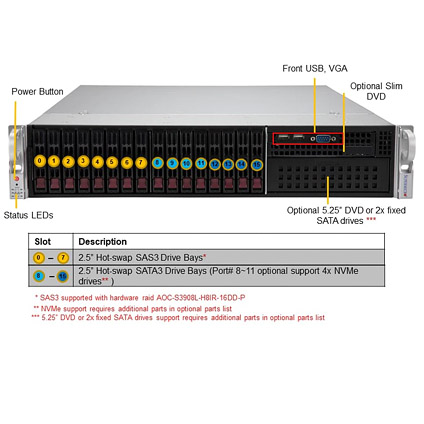

  • 8x hotswap 3.5" SATA3 (6 Gbps) Drive Bays:
    8x SAS Drives wih Broadcom® 3908 Gen4 HW RAID Controller for RAID 0, 1, 5, 6, 10, 50, 60
    8x SATA Drives with Intel® C621A Controller for RAID 0,1,5,10
  • Slim or 5.25" DVD-ROM Drive (Optional)
  • 4x hotswap 2.5" NVMe or 2x fixed 2.5" NVMe/SSD/HDD/SuperDOM Drive (Optional)
  • 1x PCI-E 3.0 x4 M.2, M.2 Form Factor: 2260, 2280, 22110
  • 4x PCI-E 4.0 x16 (LP) slots, 1x PCI-E 4.0 x8 (LP) slot
    * PCi-E slot#1 is populated with 1x AOC-S3908L-H8IR-16DD-P to support 8x SAS drives

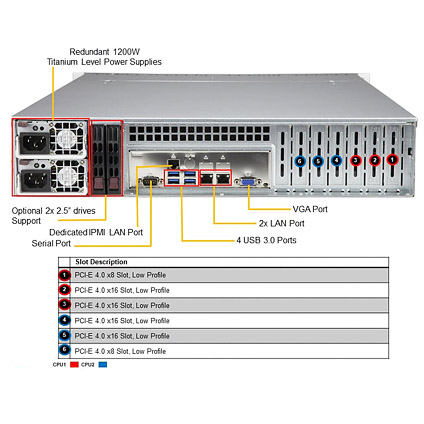

  • 1x Rear VGA, 1x Type A Port, 2x COM Ports and 6x USB Ports
  • Dual 10GBase-T LAN with Intel® X550 Ethernet Controller
  • 3x heavy duty Hot-swappable 13.5K RPM Middle Fans with optimal fan speed control
  • 1200W Redundant Titanium Power Supply
  • 24.8" Depth Rack Mount Chassis

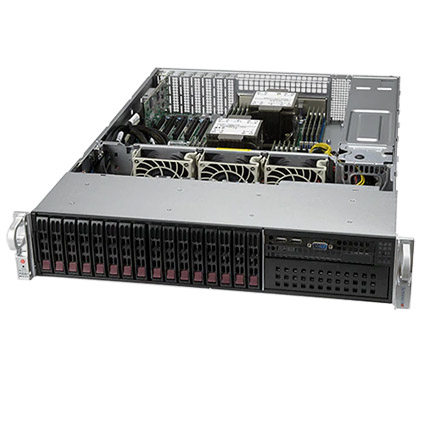

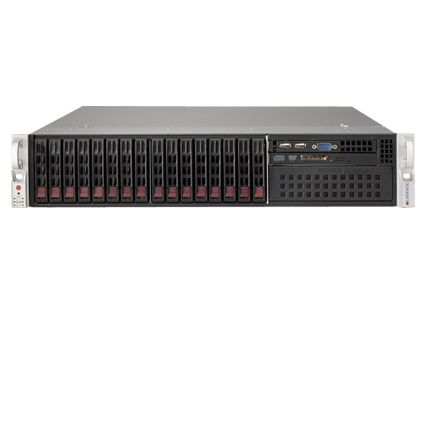

The Supermicro SuperServer 220P-C9RT 2U 24.8" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 ECC 3DS LRDIMM Memory, M.2 slot and dual 10GBase-T LAN ports onboard. The Supermicro Server 220P-C9RT comes with 16x 2.5" hot-swap drive bays, three heavy duty hot-swappable 13.5K RPM middle fans, and is equipped 1200W redundant titanium level power supply.
