Supermicro Twin SuperServer 220TP-HTTR

Features:


High Performance Computing
Hyper-Converged Infrastructure
Big Data / Big Science

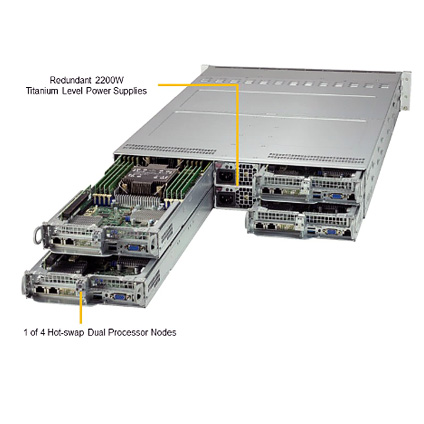

Four Hot-pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:

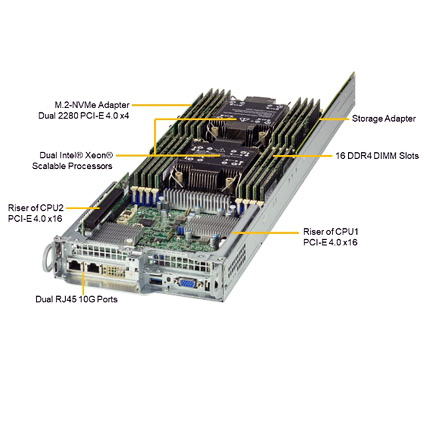

  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
    Support CPU TDP 185W
  • Intel® C621A Chipset
  • 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM

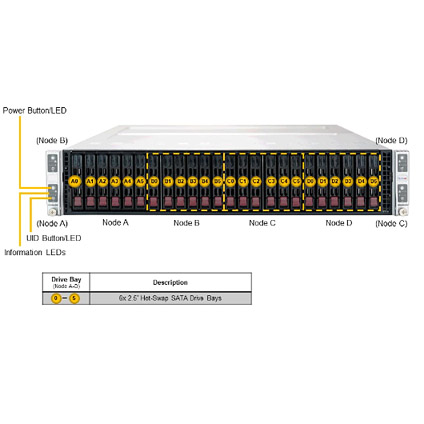

  • 6x 2.5" Hot-swap SATA Drive Bays
  • 2x PCI-E 4.0 x16 (LP), 1x PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)

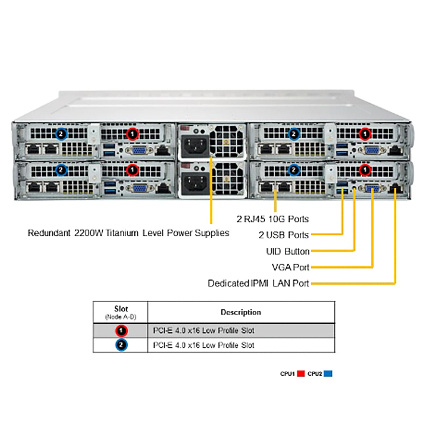

  • Intel® X710 Dual port 10GBase-T LAN onboard
  • 4x Heavy Duty 80m PWM Fans with Optimal Fan Speed Control (Per System)
  • ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports SATA (6Gbps); 3 slots per node; RAID 0, 1, 5, 10 support.
  • Two 2200W Redundant Titanium Level Power Supply
  • 28.75" Depth Rack Mount Chassis

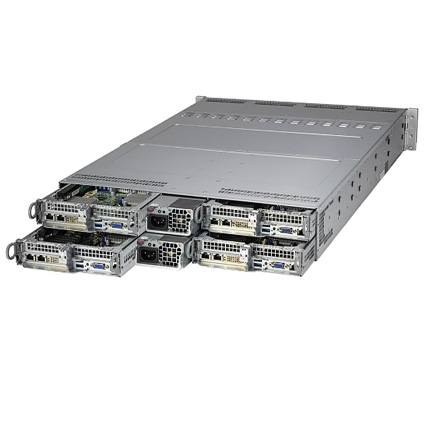

The Supermicro Twin SuperServer 220TP-HTTR is a 28.75" depth 2U 4-nodes high performance rackmount server. Each nodes supports dual socket 3rd Gen. Intel Xeon Scalable Processor, up to 4.0TB DDR4 ECC RDIMM/LRDIMM memory. The 220TP-HTTR 2U Racknount Server comes with 24x hot-swap 2.5" SATA drive bays, four 80mm heavy duty fans, and is equipped with 2200W redundant titanium level power supply.


Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X12DPT-PT6 Motherboard
2U Supermicro Rack Mount Server With X12DPT-PT6 Motherboard


  • 4x Supermicro X12DPT-PT6 Motherboard
  • 8x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 128GB(16x 8GB) DDR4 ECC Registered Memory
  • 24x 2.5" Hot-swap SATA Drive Bays
  • 4x 1.0TB SATA 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Dual 10GBase-T LAN
  • Built-in Video
  • 2200W Redundant Power Supply, Titanium Level Certified

Configured:

$15,965.00

Customize
