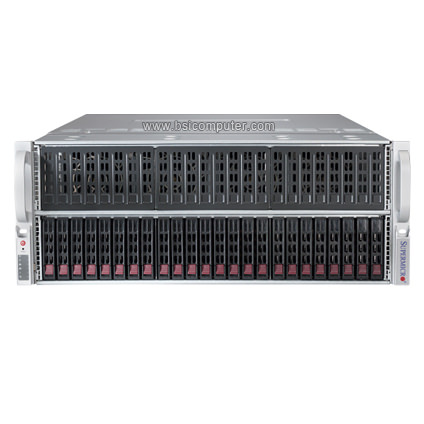

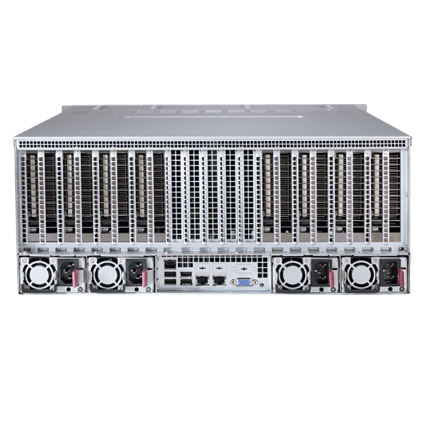

Supermicro SuperServer 4029GP-TRT 4U Rackmount Server 8x Double Width GPU Support


3D Rendering
Astrophysics, Chemistry
Cloud and Virtualization needs
Cloud Computing
Compute Intensive Application

  • 4U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM Slots
  • Up to 24 Hot-swap 2.5" Drive Bays; 8x 2.5" Drives Supported Natively
  • 8x PCI-E 3.0 x16 (Support up to 8 Double width GPU)
    2x PCI-E 3.0 x8 Slots, 1x PCI-E 2.0 x4 Slot
  • 2x 10GBase-T LAN with Intel® C622
  • 8x 92mm RPM Hot-Swap Cooling Fans
  • 29" Depth Rackmount Chassis

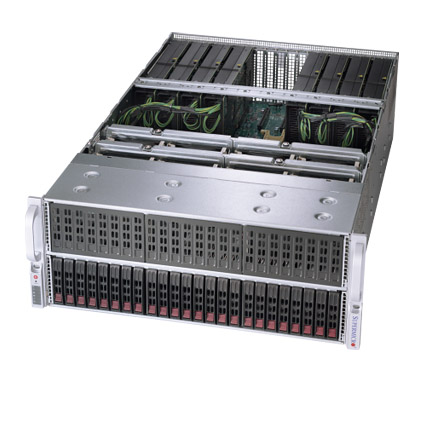

The Supermicro SuperServer 4029GP-TRT is a 29" depth 4U rackmount server that features dual Intel® Xeon® Scalable Processors, up to 3.0TB DDR4 ECC Registered Memory, built-in two 10GBase-T Ethernet LAN ports, Supports up to eight double width GPU cards. Moreover, the Supermicro Server 4029GP-TRT comes with twenty four hot-swap 2.5" drive bays, eight 92mm hot-swap cooling fans, and is equipped with 2000W redundant 80 plus titanium power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

Supermicro 4U Rackmount Server with X11DPG-OT-CPU Motherboard

  • Supermicro X11DPG-OT-CPU Motherboard
  • Supermicro X9DRG-O-PCIE Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • 32GB(4x 8GB) DDR4 ECC Reg Memory
  • 24x 2.5" Hot-swap SAS/SATA Drive Bays
  • 1x 1.0TB SATA 6.0Gb/s 7200RPM 2.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in Dual 10GBase-T LAN & 1x IPMI LAN
  • 2000W Redundant 80 Plus Titanium Power Supply

Barebone Only:
