Supermicro GPU SuperServer 420GP-TNAR


High Performance Computing

AI/Deep Learning Training
  • 4U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/35.433/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  • 6x 2.5" Hot-swap NVMe/SATA/SAS Drive Bays
  • 2x M.2 NVMe for Boot Drive
  • 10x PCI-E Gen 4.0 x16 LP Slots
    AIOM/OCP 3.0 Support
  • Flexible networking options
  • 4x Heavy Duty Fans with Optimal Fan Speed Control
  • 4x 2200W Redundant Titanium Level Power Supplies
  • 35.4" Depth Rack Mount Chassis

The Supermicro SuperServer 420GP-TNAR 4U 35.4" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 8.0TB DDR4 RDIMM/LRDIMM memory. The Supermicro GPU SuperServer 420GP-TNAR supports up to 2x M.2 slots, 6x 2.5" hot-swap NVMe/SATA/SAS drive bays, 4x heavy duty fans, and is equipped 4x 2200W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

4U Supermicro Rack Mount Server With X12DGO-6 Motherboard

  • Supermicro X12DGO-6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 6x 2.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA 6.0Gb/s 7200RPM Hard Drive

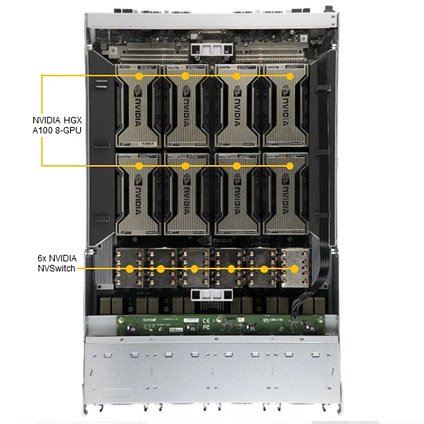

  • NVIDIA® HGX™ A100 - 8x NVIDIA® A100 SXM4 GPUs - 640GB HBM2 Memory
  • Supermicro AIOM OCP 3.0 - 2x 1GbE RJ45 - Intel i350 - PCI-E 2.1 x4 - AOC-AG-i2M
  • 4x 2200W Redundant Power Supply, Titanium Level
