Supermicro GPU SuperServer 420GP-TNR


High Performance Computing
AI/Deep Learning Training
  • 4U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series

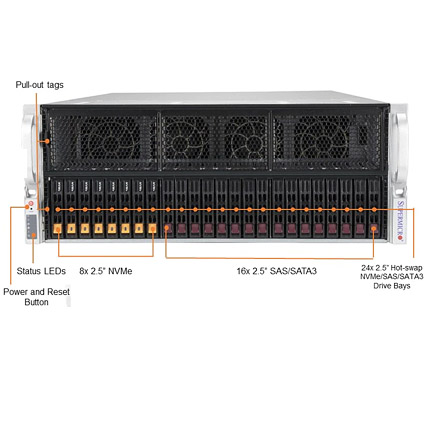

  • 24x 2.5" Hot-swap Drive Bays Supports:
    8x NVMe, 8x SATA, 8x 2.5” SATA/SAS (AOC Required)
  • 2x M.2 NVMe for Boot Drive

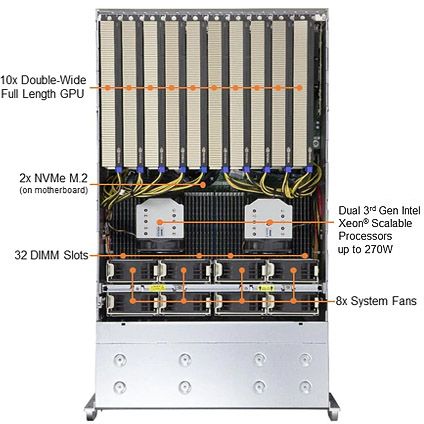

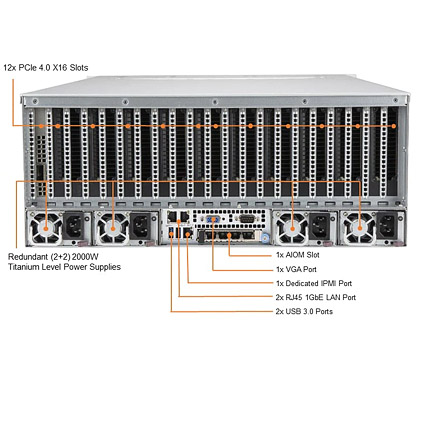

  • 12x PCI-E Gen 4.0 x16 FHFL Slots, Supports up to 10x PCIe GPUs
    AIOM/OCP 3.0 Support
  • Flexible networking options
  • 8x Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  • 4x 2000W Redundant Titanium Level Power Supplies
  • 29" Depth Rack Mount Chassis

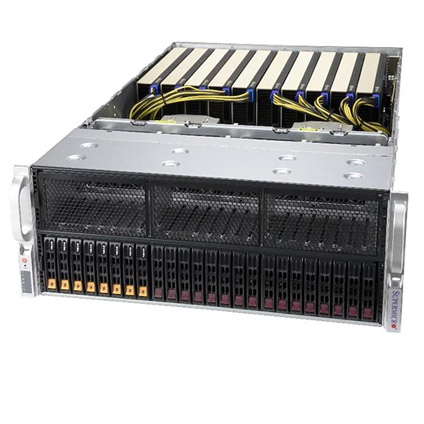

The Supermicro SuperServer 420GP-TNR 4U 29" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 8.0TB DDR4 RDIMM/LRDIMM memory. The Supermicro 420GP-TNR dual-root GPU system supports up to 10 PCIe GPUs, 2x M.2 slots, 24x 2.5" hot-swap NVMe/SATA/SAS drive bays, 8x hot-swap heavy duty fans, and is equipped 4x 2000W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

4U Supermicro Rack Mount Server With X12DPG-OA6 Motherboard

  • Supermicro X12DPG-OA6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 24x 2.5" Hot-swap Drive Bays
  • 1x 960GB Intel® SSD D3-S4510 Series 2.5" SATA 6.0Gb/s Solid State Drive
  • Built-in Video
  • 4x 2000W Redundant Power Supply, Titanium Level
