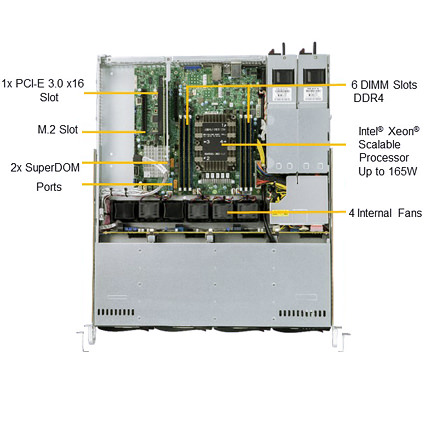

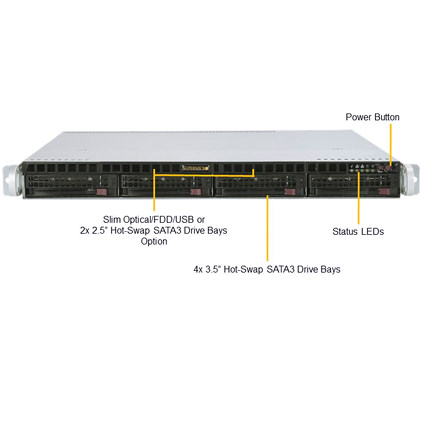

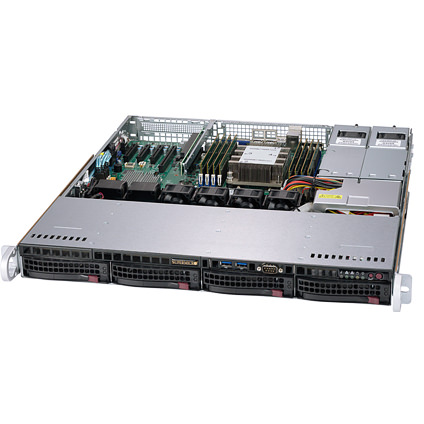

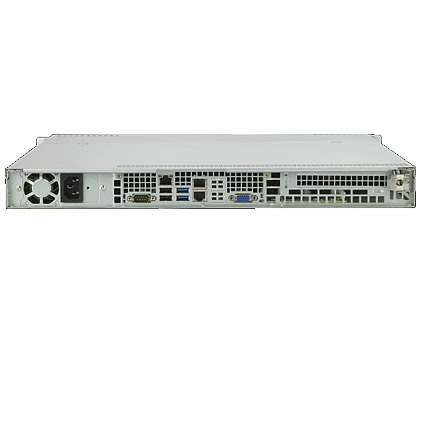

Supermicro SuperServer 5019P-MR w/ 4x 3.5" Drive Bays and 400W Redundant Power Supply


Web Hosting, VM
Compact Network Appliance
  • 1U Rackmount Server
  • Single Socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
  • Intel® C621 Express Chipset
  • Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots
  • 4x 3.5" Hot-swap SATA3 Drive Bays with RAID
  • 1x Slim DVD-ROM Drive(Optional)
  • 1x PCI-E 3.0 x16 (FH, HL) Slot, 1x M.2 Slot
  • 2x 1GbE with Marvell® 88E1512
  • 1x VGA, 2x COM, 5x USB 3.0, 6x USB 2.0
  • 6x 40mm PWM Cooling Fans
  • 400W Redundant Platinum Power Supplies w/ BBP® Option
  • 19.8" Depth Rack Mount Chassis

The Supermicro 5019P-MR 19.8" short depth 1U Rackmount server features Intel® Xeon® Scalable Processor, supports up to 768GB DDR4 ECC 3DS LRDIMM Memory, built-in two Gigabit Ethernet ports. The Supermicro SuperServer 5019P-MR comes with four 3.5" hot-swap drive bays, six 40mm PWM cooling fans, and is equipped with 400W redundant platinum Level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

1U Supermicro Rack Mount Server With X11SPW-F Motherboard

  • Supermicro X11SPW-F Motherboard
  • Intel® Xeon® Bronze 3206R Processor 8-Core 1.90 GHz 11MB Cache
  • Intel® C622 Chipset
  • 8GB(1x 8GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit LAN, 1x IPMI LAN
  • 400W Redundant Power Supply, Platinum Level
